Avon Protection FM50™ Air Purifying Respirator Kit

Back to Avon Protection Products
Limited-Time Offer on FM50 Kit

Limited-Time Offer on FM50 Kit

FM50 APR Front FM61EU Filters Sunlight Outsert

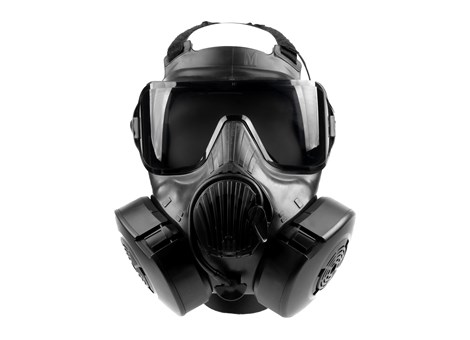

Avon Protection FM50™ APR | Front View | FM61EU Filters & Sunlight Insert Installed

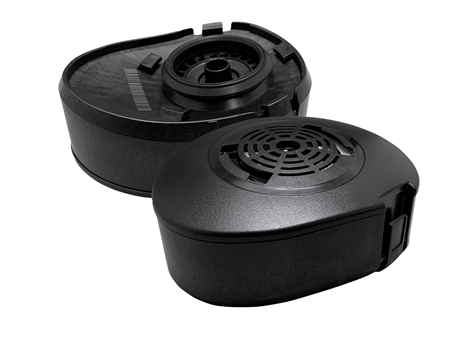

FM61EU Filter Pair

FM61EU Filter Pair

Avon Protection Sunlight Outsert

Avon Protection Sunlight Outsert

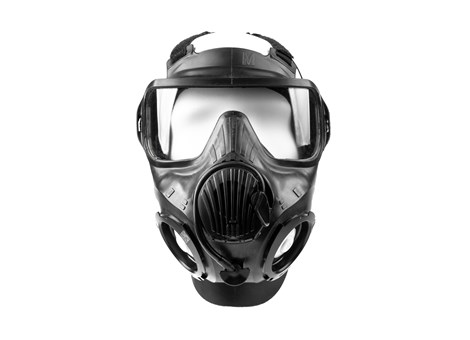

FM50 APR Front View

Avon Protection FM50™ APR | Front View

FM50 APR Front View FM61EU Filters Installed

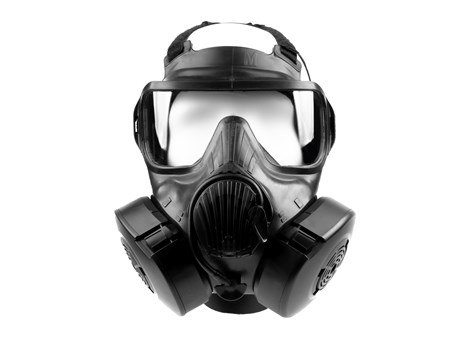

Avon Protection FM50™ APR | Front View | FM61EU Filters Installed

FM50 APR Right Angle

Avon Protection FM50™ APR | Right Angle

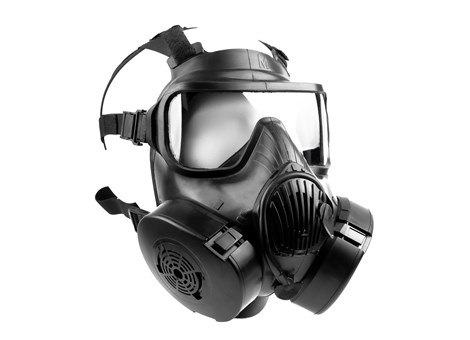

FM50 APR Right Angle FM61 Filters

Avon Protection FM50™ APR | Right Angle | FM61EU Filters Installed

FM50 APR Right Side FM61 Filters Sunlight Insert

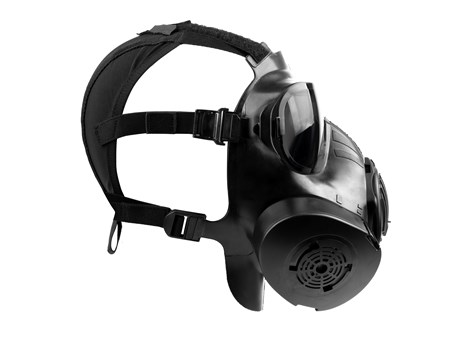

Avon Protection FM50™ APR | Right Side | FM61EU Filters & Sunlight Insert Installed

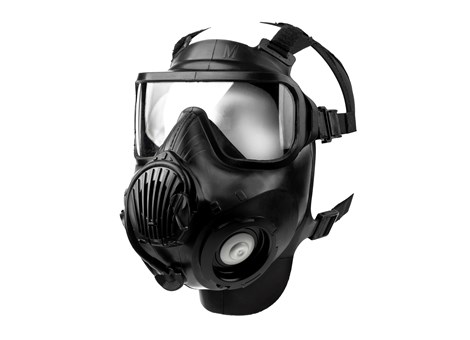

FM50 APR Left Angle

Avon Protection FM50™ APR | Left Angle

FM50 APR Rear View

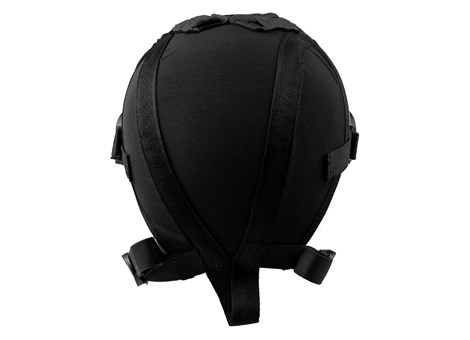

Avon Protection FM50™ APR | Rear View

  • $349.00MAP Pricing
  • Size
  • Quantity
  • Avon Protection FM50™ Air Purifying Respirator Kit added to cartHere's a few other products that may interest you.
    • Avon Protection Blueblocker Outsert
      Product Details
    • Avon Protection Clear Outsert
      Product Details
    • Avon Protection FM61EU CBRN Filter
      Product Details
    • Avon Protection Sunlight Outsert
      Product Details
    • Avon Protection Universal Mask Carrier
      Product Details
    • Avon Protection Vision Correction Assembly
      Product Details
    View my cartLogin
    Avon Protection FM50™ Air Purifying Respirator Kit added to wishlistHere's a few other products that may interest you.
    • Avon Protection Blueblocker Outsert
      Product Details
    • Avon Protection Clear Outsert
      Product Details
    • Avon Protection FM61EU CBRN Filter
      Product Details
    • Avon Protection Sunlight Outsert
      Product Details
    • Avon Protection Universal Mask Carrier
      Product Details
    • Avon Protection Vision Correction Assembly
      Product Details
    View my wishlistLogin

Product Description

FM50™ Air Purifying Respirator Kit

This kit includes the FM61EU filter pair and a sunlight outsert.

FM50™ is the latest generation CBRN full face mask specifically designed to meet the latest NATO forces military mask requirements. Developed to counter the multiple CBRN threats encountered in modern war fighting, anti-terrorist and peace-keeping operations, the FM50™ brings a whole new dimension to respirator design, comfort and protection.

This product is controlled by the U.S. Government and may not be exported, sold, transferred, transported or shipped outside of the U.S., either in their original form or after being incorporated into other items without first obtaining approval from the U.S. government or as authorized by U.S. law and regulations. Avon Protection products are subject to the Export Administration Regulations (EAR) with Control Classification Number (ECCN) 1A004.

This product is subject to International Traffic in Arms Regulations (ITAR) XIV (f)(4)​.

Product Features

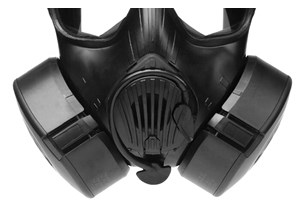

  • Air Management
    • Low inhalation resistance & excellent de-mist properties
    • Heat build-up minimized
    • Low-re-breathed carbon dioxide

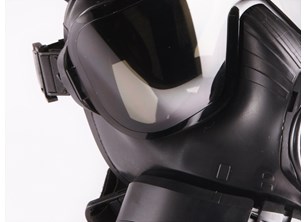

  • Comfort
    • 3 face piece sizes for improved fit
    • Chlorobutyl rubber silicone blend mask
    • High flow fail safe drinking device

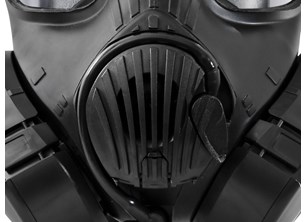

  • Communications
    • Front mounted exhale valve allows clear direct communication
    • Electronic Communication Port (ECP) for optional voice projection
    • Radio communications available through ECP

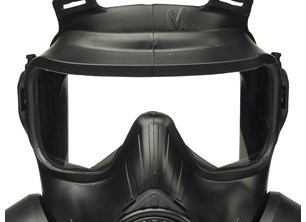

  • Field of View
    • Panoramic single lens visor
    • Optically correct visor
    • Scratch resistant

Performance

Technical Data

CBRN Agent Resistance  Greater than 36 hrs
Mustard (H) Greater than 36 hrs
Sarin (GB) Greater than 36 hrs
Soman (GD) Greater than 36 hrs
VX Greater than 36 hrs
Laboratory Protection Factory Performance (Sodium Chloride) Greater than 10,000
Weight
FM50 Mask (including twin filters) 840 grams
Breathing Performance
Re-breathed CO2 0.80%
Inhalation Resistance at: Mask Only Mask & Filters
30 L/Min 2 mm WG 10 mm WG
95 L/Min 8 mm WG 30 mm WG
160L/Min 12 mm WG 64 mm WG
Exhalation resistance at:
85 L/Min 7 mm WG
160 L/Min 12 mm WG
Field of View
Visual Field Score - NIOSH CBRN APR Standard 96



Sizing

*ALL SALES ARE FINAL. OPEN BOX RETURNS WILL NOT BE ACCEPTED.

Please select the correct size according to the sizing chart below. NOTE: For proper mask fit, faces must be clean shaven.

Facial hair, Sideburns, bangs and headwear may prevent a protective facepiece from forming and/or maintaining a tight-fitting seal on someone’s face. It is recommended the user be clean shaven and/or hair pulled back for sizing and using the respirator to ensure an appropriate seal.

To ensure you have selected the correct size you should perform a negative pressure test. The negative pressure test can be performed by putting the mask on your face, breathe out, then block the inhalation valve and take a deep breath. For the FM50 you will need to block both inhalation valves before taking a breath. The mask should collapse to the face. If you experience a tight seal to your face then the mask has the right fit.


*Except in the rare case of defective product. Please contact customer service for further instruction in this instance.

If you are still unsure of your size or are certain you are going to be in a hazardous environment and need to ensure the most accurate sizing you may purchase a Sizing Tool.


Resources

  • Marketing Materials
    • FM50™ Brochure
    • Frequently Asked Questions
