EXFIL® Ballistic SL

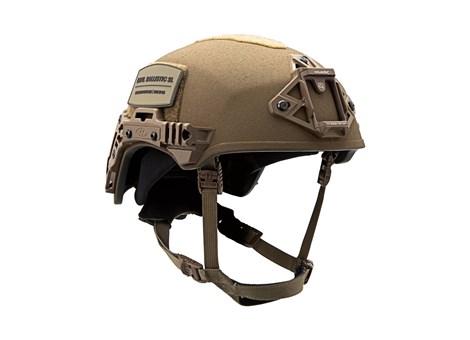

EXFIL® Ballistic SL | Coyote Brown | Right Angle

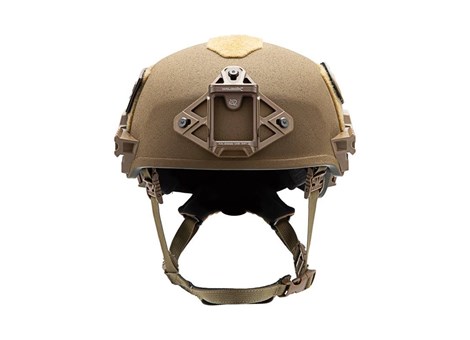

Coyote Brown EXFIL Ballistic SL Helmet Front

EXFIL® Ballistic SL | Coyote Brown | Front

Coyote Brown EXFIL Ballistic SL Helmet Side

EXFIL® Ballistic SL | Coyote Brown | Side

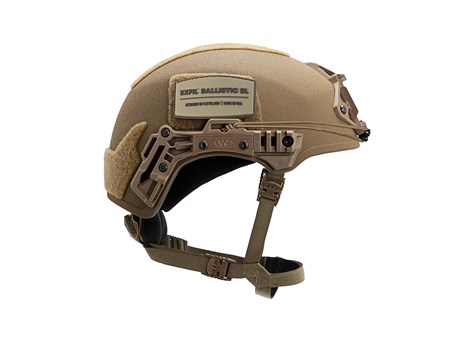

EXFIL® Ballistic SL in Coyote Brown, side view with Shock Cord installed

EXFIL® Ballistic SL | Coyote Brown | Side | Shock Cord Installed

Coyote Brown EXFIL Ballistic SL Helmet Rear

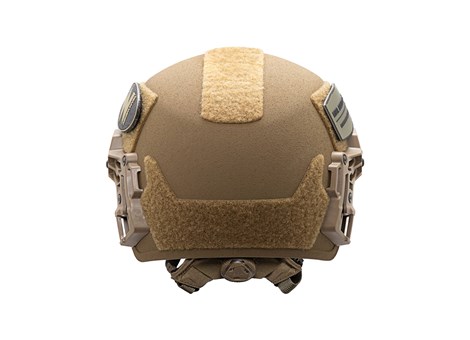

EXFIL® Ballistic SL | Coyote Brown | Rear

EXFIL® Ballistic SL | Interior

Black EXFIL Ballistic SL Helmet Right Angle

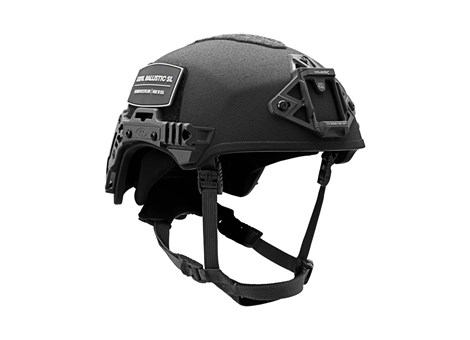

EXFIL® Ballistic SL | Black | Right Angle

EXFIL® Ballistic SL | Black | Front

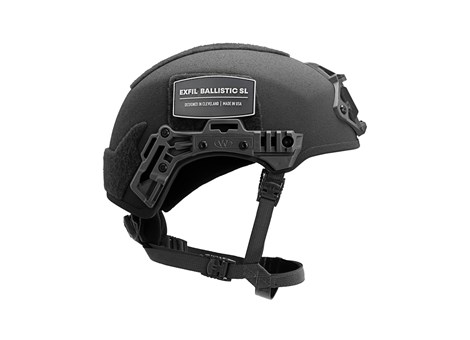

EXFIL® Ballistic SL | Black | Side

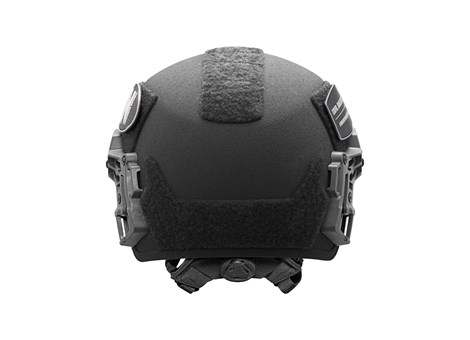

EXFIL® Ballistic SL | Black | Rear

MultiCam EXFIL Ballistic SL Helmet Right Angle

EXFIL® Ballistic SL | MultiCam® | Right Angle

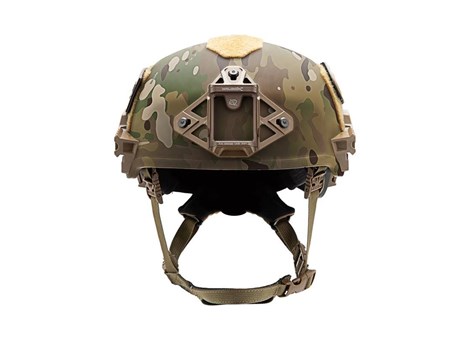

MultiCam EXFIL Ballistic SL Helmet Front

EXFIL® Ballistic SL | MultiCam® | Front

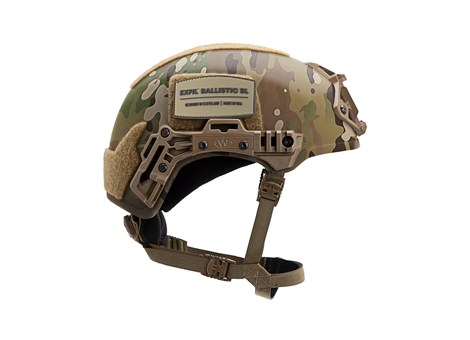

EXFIL® Ballistic SL | MultiCam® | Side

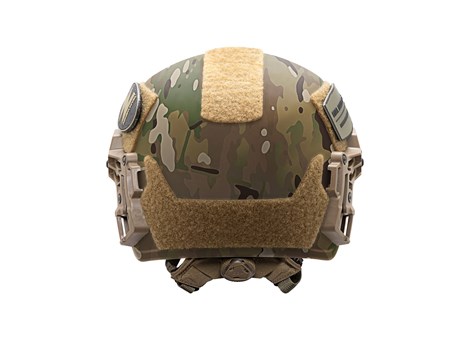

EXFIL® Ballistic SL | MultiCam | Rear

Ranger Green EXFIL Ballistic SL Helmet Right Angle

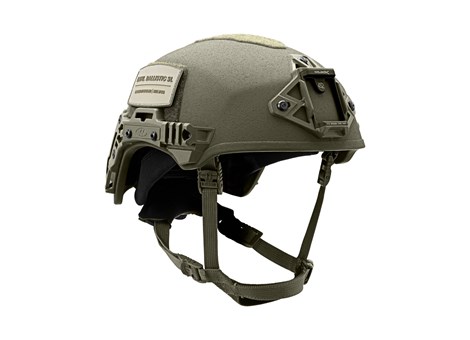

EXFIL® Ballistic SL | Ranger Green | Right Angle

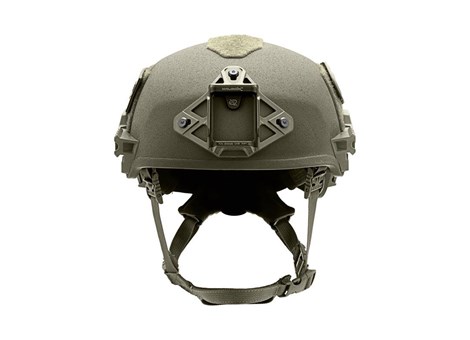

Ranger Green EXFIL Ballistic SL Helmet Front

EXFIL® Ballistic SL | Ranger Green | Front

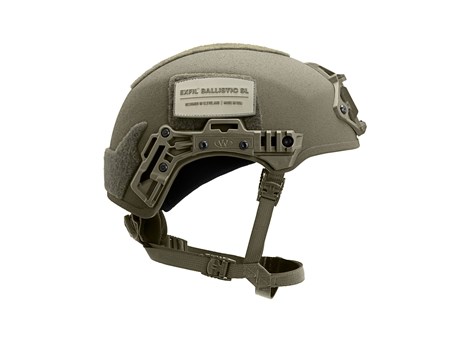

Ranger Green EXFIL Ballistic SL Helmet Side

EXFIL® Ballistic SL | Ranger Green | Side

EXFIL® Ballistic SL | Ranger Green | Rear

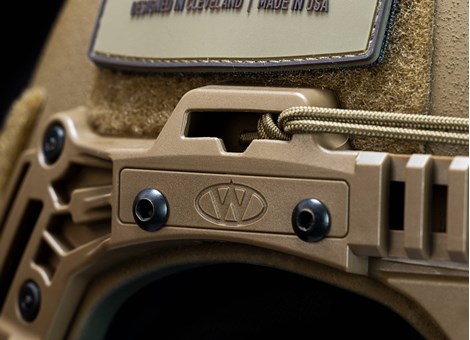

EXFIL® Ballistic SL with Shock Cord installed on the EXFIL® Rail 3.0

EXFIL® Ballistic SL | Shock Cord

$1,497.05U.S. Pricing Only
Available Colors
- Black
- Coyote Brown: Extended Lead Time (Size 1)
- MultiCam® (+$67.94)
- Ranger Green
Size
- Size 1 (M/L)
- Size 2 (XL)
Left Eye Dominant (LED) Retention
- No
- Yes
Quantity
EXFIL® Ballistic SL added to cartHere's a few other products that may interest you.
View my cartLogin
EXFIL® Ballistic SL added to wishlistHere's a few other products that may interest you.
View my wishlistLogin

Product Description

The EXFIL^® Ballistic SL features a new lightweight composite shell providing a 15% weight reduction over the original EXFIL^® Ballistic while offering the same unique EXFIL^® shell geometry for an optimal fit. The new EXFIL^® Rail 3.0 accessory mounting system, which is 25% lighter than the previous EXFIL^® Rail 2.0 system, is compatible with standard EXFIL^® accessories, and was designed in conjunction with the new EXFIL^® Ballistic Visor. A new SL Shroud* from Wilcox^® provides a 35% reduction in weight from the previous Wilcox^® W Shroud, while maintaining full NVG mounting capabilities and lanyard compatibility. The EXFIL^® Ballistic SL utilizes the innovative, field-proven, boltless CAM FIT™ retention to quickly adjust to individual head shapes and Zorbium^® foam liner to provide customizable comfort while protecting against blunt impact.

*NOTE: The NVG mount/interface required for attaching night vision devices to the EXFIL^® Ballistic SL helmet is not included.

Product comparison

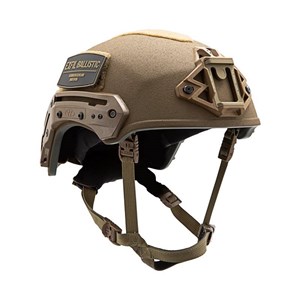

EXFIL® Ballistic
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
- Liner System
  Zorbium® foam liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® W shroud.
- Accessory Rail System
  Available in either Ballistic Rail 2.0 or 3.0
EXFIL® Ballistic SL
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.22 lbs (1.01kg) for size 1, 2.31 lbs (1.05kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm FMJ RN @ 1195 ft/s (365 m/s). BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
- Liner System
  Zorbium® foam liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® shroud.
EXFIL® Carbon
- Shell Technology
  Carbon Fiber Shell
- Weight
  Size 1 is 1.66 lbs (0.75 kg). Size 2 is 1.68 lbs (0.76 kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures. Also exceeds shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes eight adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Wilcox® W shroud for NVG mounts, compatible with retractable lanyard system.
- Accessory Rail System
  Available in either Carbon/LTP Rail 2.0 or 3.0

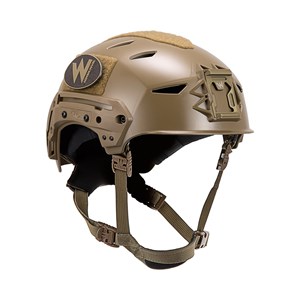

EXFIL® LTP
- Shell Technology
  Polycarbonate Copolymer Shell
- Weight
  Both sizes weigh 1.59 lbs (.72kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Meets shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes six adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Integrated Wilcox® machined aluminum mounting plate for NVG mounts.
- Accessory Rail System
  Available in either Carbon/LTP Rail 2.0 or 3.0

Product Features

Boltless CAM FIT™ Retention System
- Utilizes Boa® Fit System for optimized stability and fit
- Cam Lock sliders for one-handed adjustment and secure fit
- Left Eye Dominant (LED) option also available
EXFIL® Ballistic/SL Rail 3.0 System
- 25% lighter than the original EXFIL® rail
- Compatible with all EXFIL® accessories, including the EXFIL® Ballistic Visor and the EXFIL® Face Shield
- Includes two Magpul® M-LOK® picatinny style rails and mounting hardware
- Includes shock cord kit for stabilizing NVG
Zorbium® Foam Liner
- 16 customizable comfort pads in 2 thicknesses
- Removable center pad to easily accommodate overhead comms
- Replacement comfort pads available for purchase
Wilcox® SL Shroud for NVG Mounts
- Provides a 35% reduction in weight from previous Wilcox® W Shroud
- Lanyard compatible
Light Weight Hybrid Composite Shell
- 15% lighter than the original EXFIL® Ballistic
- Unique EXFIL® geometry adds strength while maintaining optimal fit and balance
