Team Wendy® EXFIL® Ballistic SL Helmet

Team Wendy® EXFIL® Ballistic SL

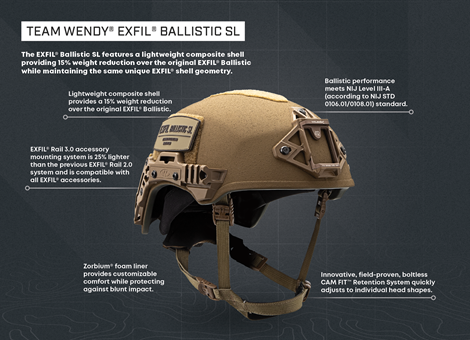

EXFIL® Ballistic SL Features

EXFIL® Ballistic SL Technical Data Sheet | Front Page

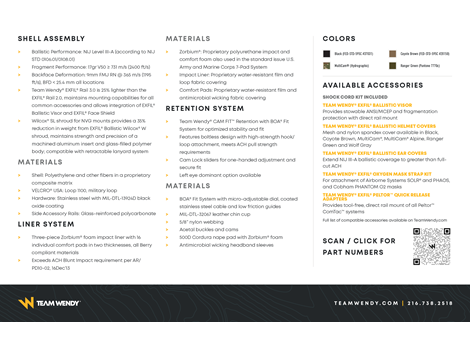

EXFIL® Ballistic SL Technical Data Sheet | Back Page

EXFIL® Ballistic SL | Black | Front

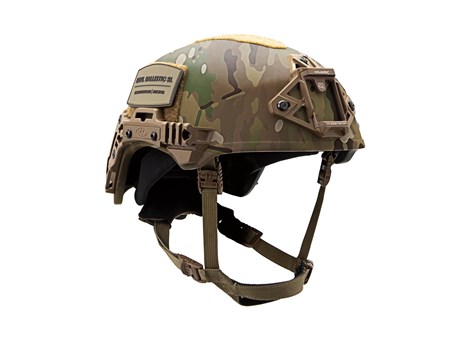

MultiCam EXFIL Ballistic SL Helmet Right Angle

EXFIL® Ballistic SL | MultiCam® | Right Angle

EXFIL® Ballistic SL | Ranger Green | Rear

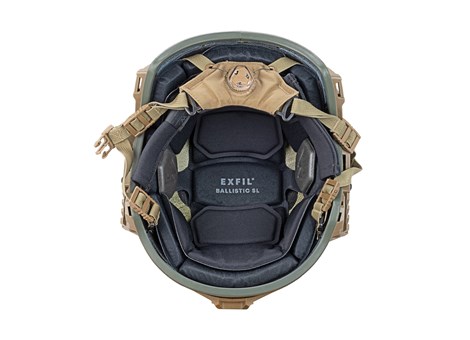

EXFIL® Ballistic SL | Liner/Interior

$1,932.00MAP Pricing
Available Colors
- Black
- Coyote Brown
- MultiCam® (+$63.00)
- Ranger Green
Size
- Size 1 (M/L)
- Size 2 (XL)
Left Eye Dominant (LED) Retention
- No
- Yes
Quantity
Team Wendy® EXFIL® Rail 3.0 Ballistic SL added to cartHere's a few other products that may interest you.
View my cartLogin
Team Wendy® EXFIL® Rail 3.0 Ballistic SL added to wishlistHere's a few other products that may interest you.
View my wishlistLogin
CURRENT LEAD TIME FOR EXFIL^® BALLISTIC SL HELMET ORDERS IS 16 WEEKS FOR ORDERS UNDER 10 UNITS. ORDERS WILL SHIP SOONER IF AVAILABLE.

Product Description

Ballistic performance meets NIJ Level III-A (according to NIJ STD 0106.01/0108.01) standard.
Lightweight composite shell provides a 15% weight reduction over the original EXFIL® Ballistic.
Offers the same unique EXFIL® shell geometry as the original for an optimal fit.
EXFIL® Rail 3.0 accessory mounting system is 25% lighter than the previous EXFIL® Rail 2.0 system and is compatible with all EXFIL® accessories.
The SL Shroud* from Wilcox® provides a 35% reduction in weight from the previous Wilcox® W Shroud while maintaining full NVG mounting capabilities and lanyard compatibility.
Innovative, field-proven, boltless CAM FIT™ Retention System quickly adjusts to individual head shapes.
Zorbium® foam liner provides customizable comfort while protecting against blunt impact.
Two (2) 5-Slot Magpul® MOE® picatinny rails with mounting hardware and a shock cord kit are included with helmet.

*NOTE: While the Wilcox^®SL shroud comes standard with the EXFIL^® Ballistic SL, the NVG mount/interface required for attaching night vision devices to the helmet, such as the Wilcox^® G24, is not included.

Product comparison

EXFIL® Ballistic
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® W shroud.
EXFIL® Ballistic SL
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.22 lbs (1.01kg) for size 1, 2.31 lbs (1.05kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm FMJ RN @ 1195 ft/s (365 m/s). BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® shroud.
EXFIL® Carbon
- Shell Technology
  Carbon Fiber Shell
- Weight
  Size 1 is 1.66 lbs (0.75 kg). Size 2 is 1.68 lbs (0.76 kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures. Also exceeds shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes eight adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Wilcox® W shroud for NVG mounts, compatible with retractable lanyard system.
EXFIL® LTP
- Shell Technology
  Polycarbonate Copolymer Shell
- Weight
  Both sizes weigh 1.59 lbs (.72kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Meets shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes six adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Integrated machined aluminum mounting plate for NVG mounts.

Product Features

Boltless CAM FIT™ Retention System
- Utilizes BOA® Fit System for optimized stability and fit
- Cam Lock sliders for one-handed adjustment and secure fit
- Left Eye Dominant (LED) option also available
EXFIL® Ballistic/SL Rail 3.0 System
- 25% lighter than the original EXFIL® rail
- Compatible with all EXFIL® accessories, including the EXFIL® Ballistic Visor and the EXFIL® Face Shield
- Includes two Magpul® M-LOK® Picatinny-style rails and mounting hardware
- Includes shock cord kit for stabilizing NVG
Zorbium® Foam Liner
- 16 customizable comfort pads in two thicknesses
- Removable center pad to easily accommodate overhead comms
- Replacement comfort pads available for purchase
Wilcox® SL Shroud for NVG Mounts
- Provides a 35% reduction in weight from previous Wilcox® W Shroud
- Lanyard compatible
Lightweight Hybrid Composite Shell
- 15% lighter than the original EXFIL® Ballistic
- Unique EXFIL® geometry adds strength while maintaining optimal fit and balance

Performance

Ballistic Performance

NIJ Level III-A (according to NIJ STD 0106.01/0108.01)

Fragment Performance

17gr V50 ≥ 2400 ft/s (731 m/s)

Backface Deformation

9mm FMJ RN @ 1195 ft/s (365 m/s)
BFD < 25.4 mm all locations

Blunt Impact Performance

Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec’13

Weight

Size	Complete System	Shell
Size 1 (M-L)	2.22 lbs (1.01 kg)	1.51 lbs (0.685 kg)
Size 2 (XL)	2.31 lbs (1.05 kg)	1.59 lbs (0.725 kg)

Complete system weight includes helmet shell, accessory rails, impact liner and retention system.

Sizing

Size	Head Circumference (in)	Head Circumference (cm)	Hat Size
Size 1 (M-L)	20.5 – 23.5	52 – 60	6 5/8 – 7 1/2
Size 2 (XL)	23 – 24.75	58 – 63	7 3/8 – 7 7/8

PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size. You can customize the fit with the comfort pads that are included with your helmet purchase. If more pads are needed, we sell additional comfort pad sets.

Sizing with comfort pads installed:
