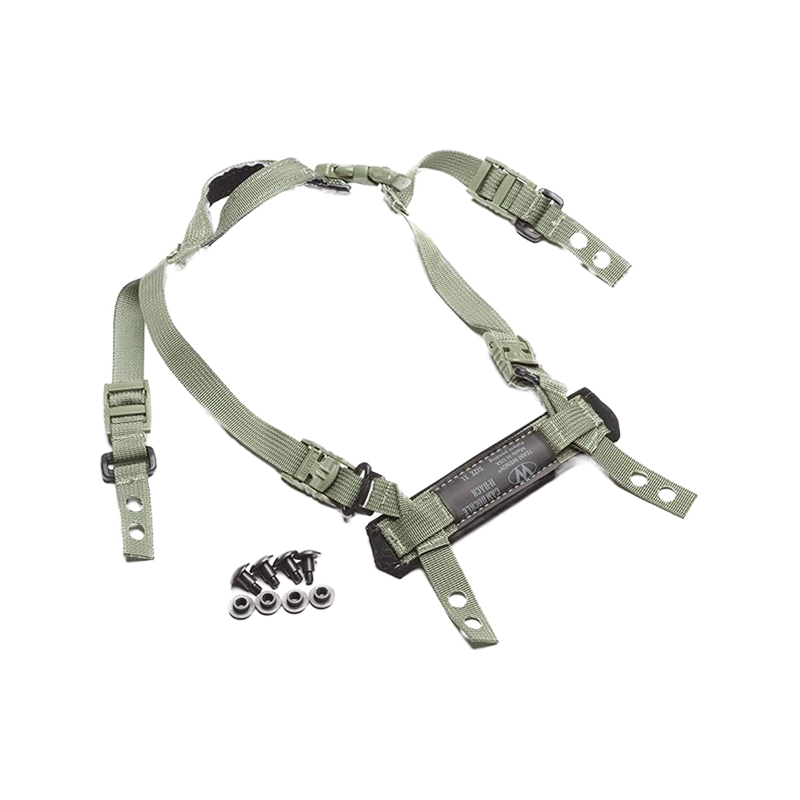

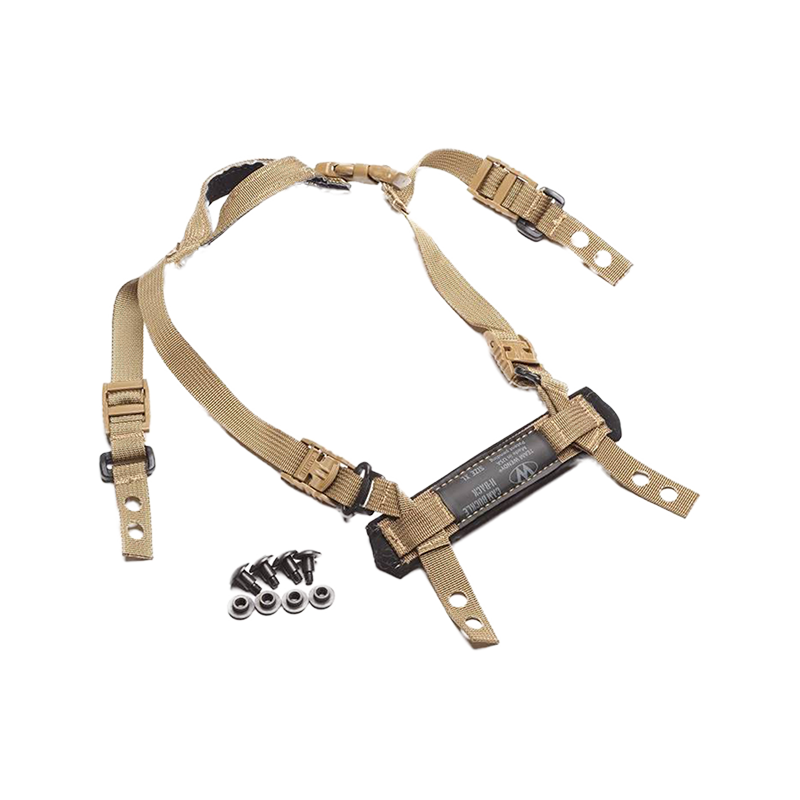

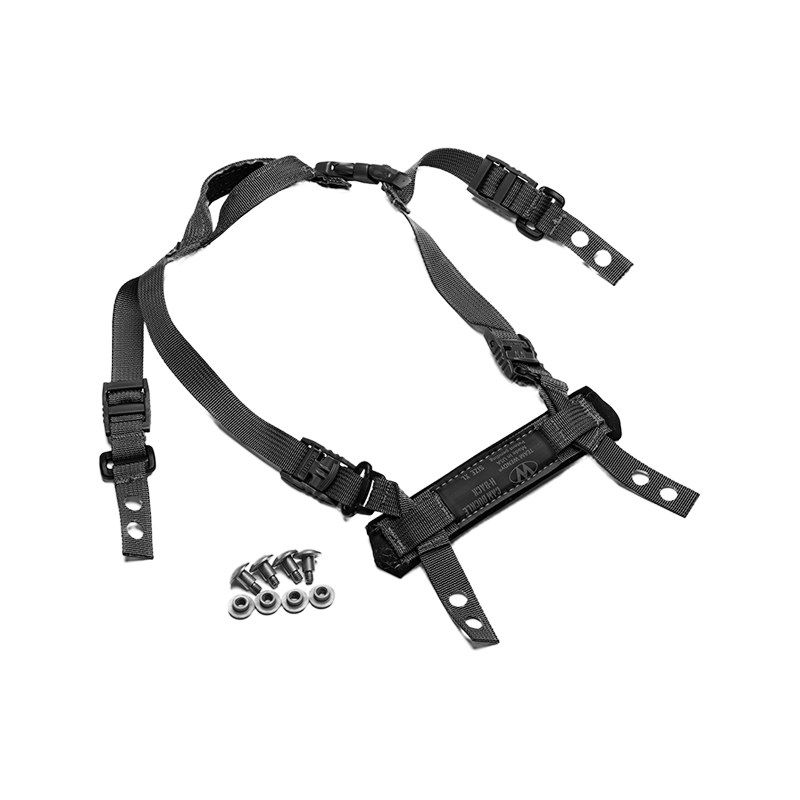

Team Wendy® CAM FIT™ H-Back Retention System

CAM FIT™ H-Back Retention System utilizes Cam Lock sliders which allow for one-handed adjustment and secure helmet fit.

Shop now

Get in touch

Find a dealer

Colors:

Sizes:

Size 1 (M/L)

Size 2 (XL)

Shell types:

ACH/MICH

USMC ECH

Data sheet:

Download

Utilizes Cam Lock sliders which allow for one-handed adjustment and secure helmet fit 
Adjustment straps and chin cup have been designed for a close, comfortable fit to the wearer's face 
Asymmetric design keeps the buckle tucked smoothly along the jaw line while maintaining a snug, even feel around the chin cup 
Ultrasuede chin cup lining ensures maximum comfort and chafe-free wear at any temperature

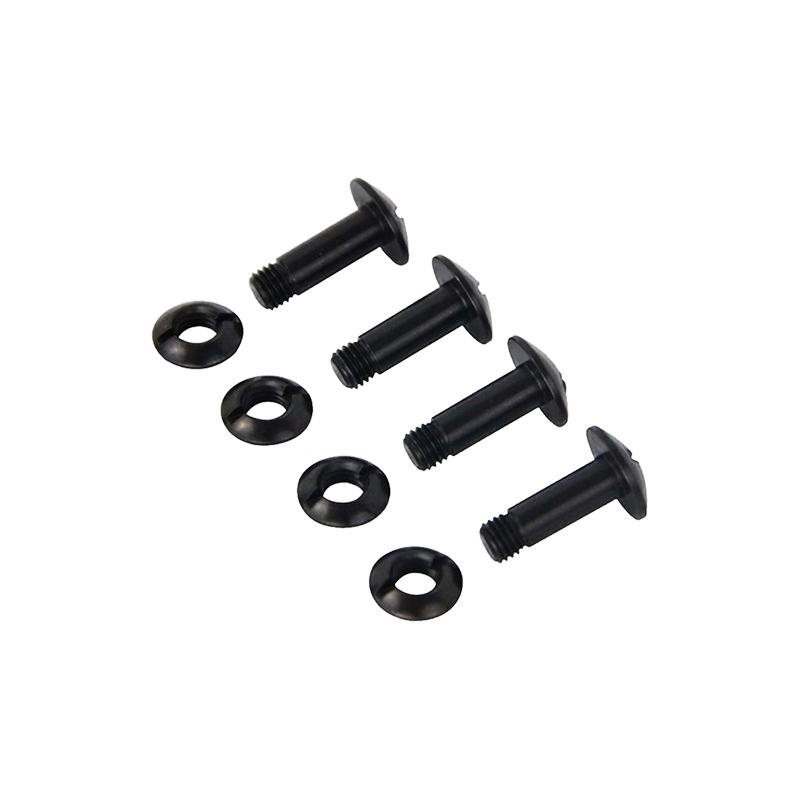

Note: All CAM FIT™ H-back retention systems ship complete with hardware. Included hardware may not be compatible with side rail systems; in these cases original hardware can be used or CAM FIT™ ARC Rail Hardware Kit can be purchased.

Product Performance

Team Wendy® CAM FIT™ H-Back Retention System

Pull Strength Performance

Compliant with ACH and ECH Static Pull Strength requirements

* Independently tested in accordance to GL-PD-07-19 – 2007 Section 3.5.2.1, Static Pull Strength and DRAFT-ECH-ICEPG16-0001 – 2009 Section 3.6.3 Static Pull Strength

Size

Team Wendy® CAM FIT™ H-Back Retention System

Size:

Size	M/L	XL
Face Circumference (in.)	26-29	27.5-35.5

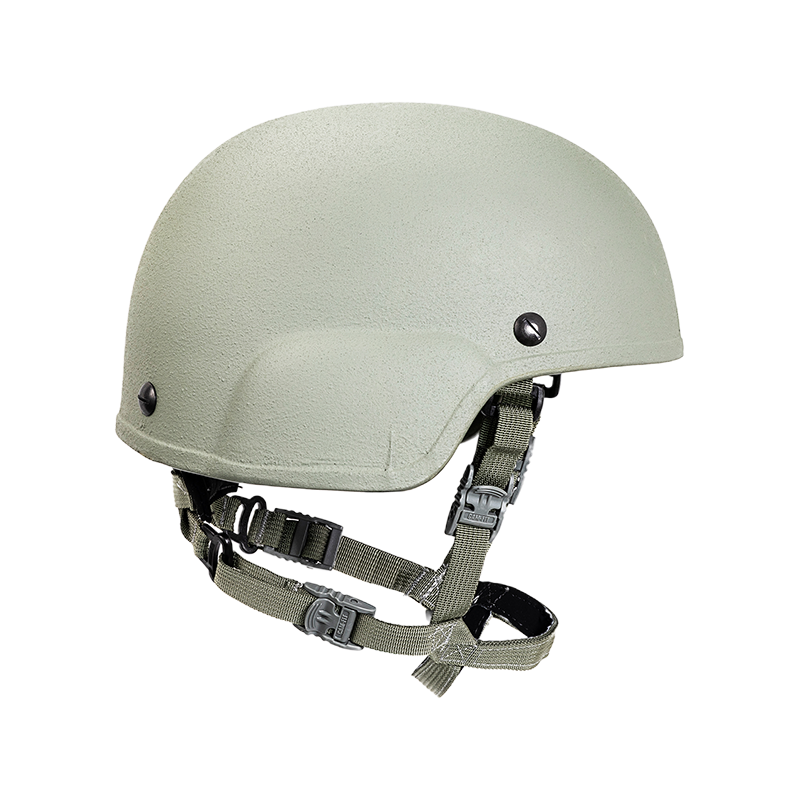

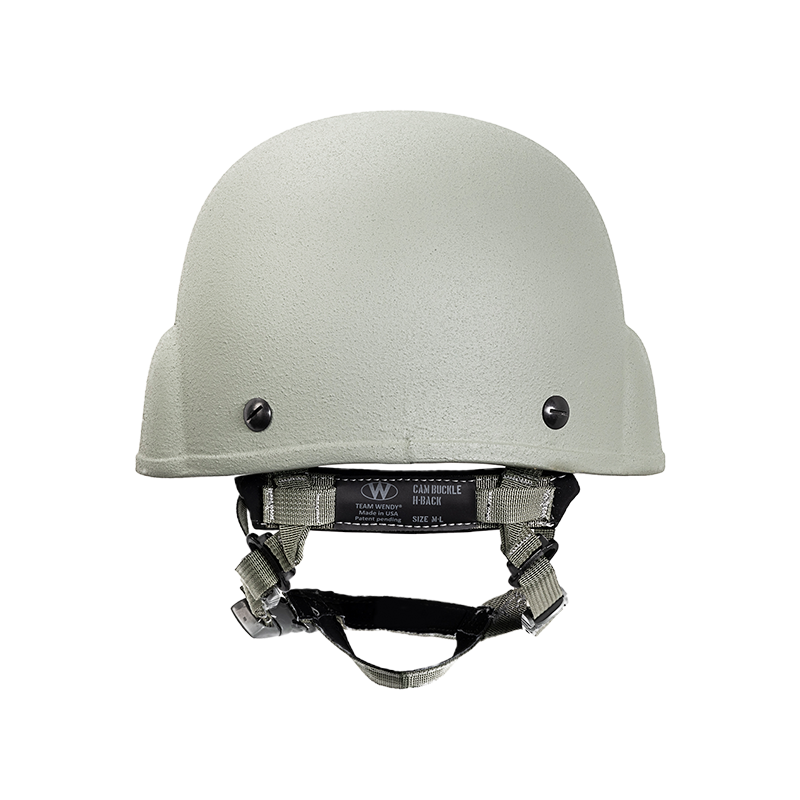

The CAM FIT™H-Back Chinstrap is compatible with ACH, MICH, TC2000 series ballistic helmet styles and many other ballistic helmets with 4-point retention mounting holes. Size M/L fits a face circumference range of 26-29” (this size fits most ACH M, L, and some XL wearers). Size XL fits a face circumference range of 27.5-32.5”. Users have multiple set-up options depending on head and face circumference.
