Ballistic Helmets

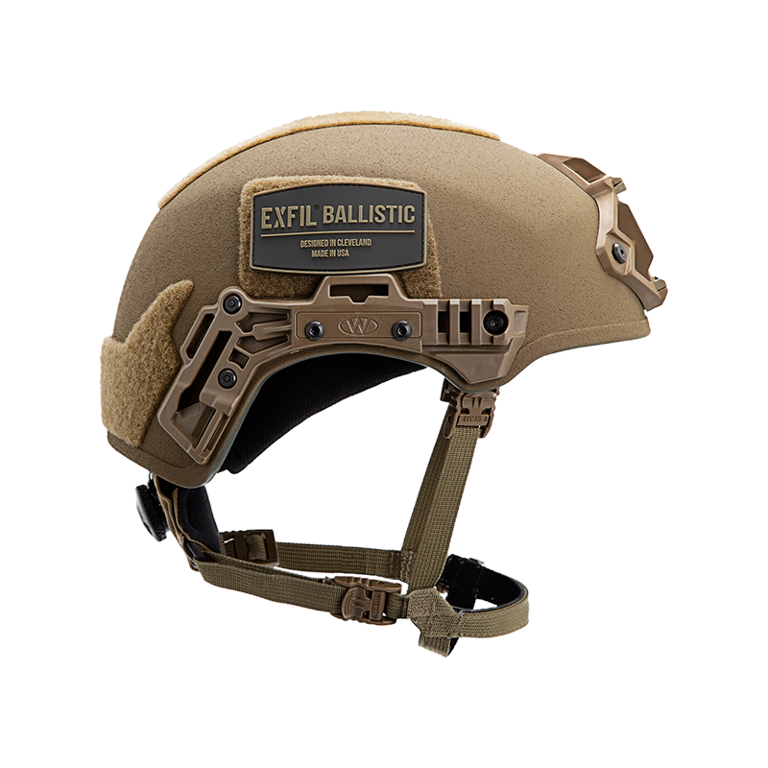

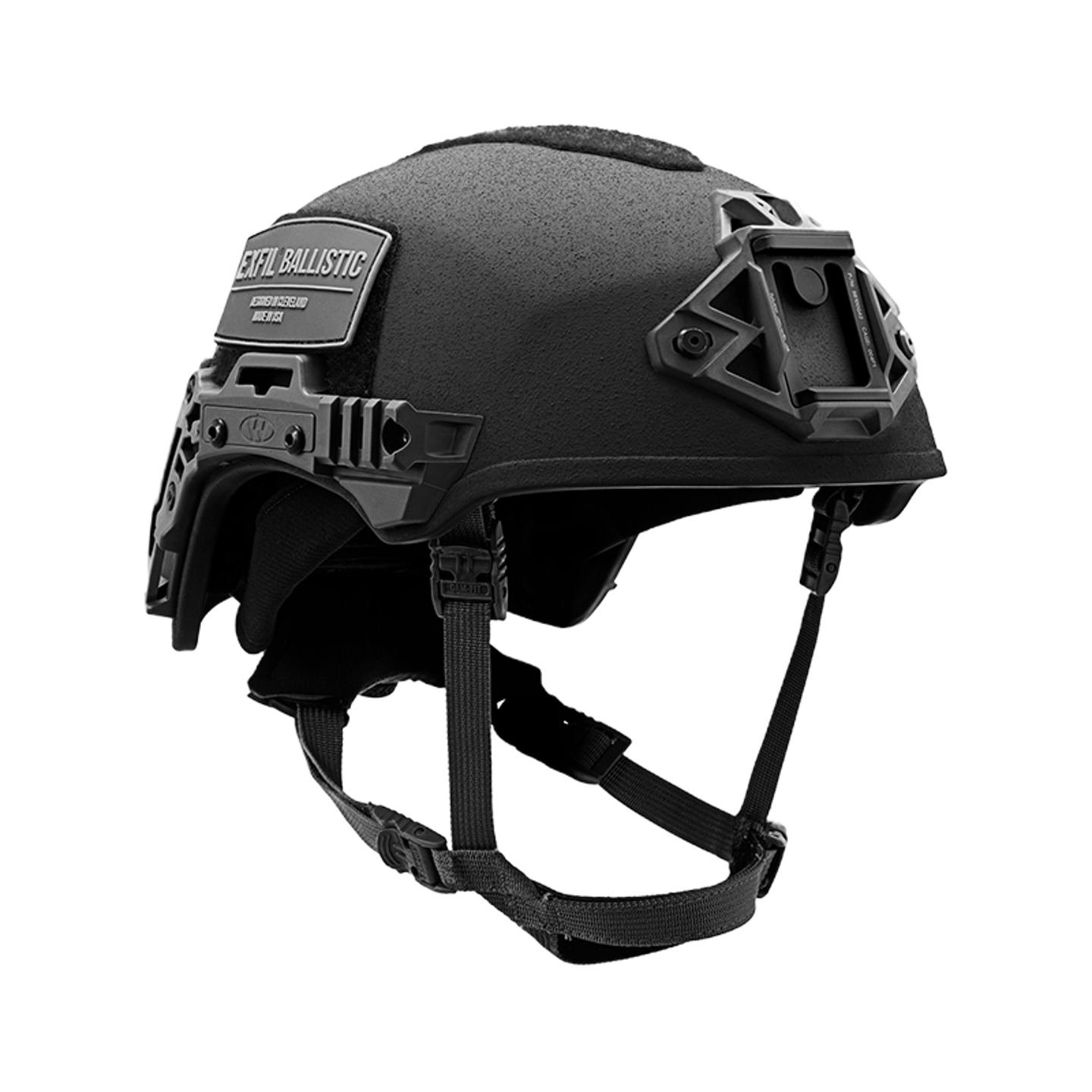

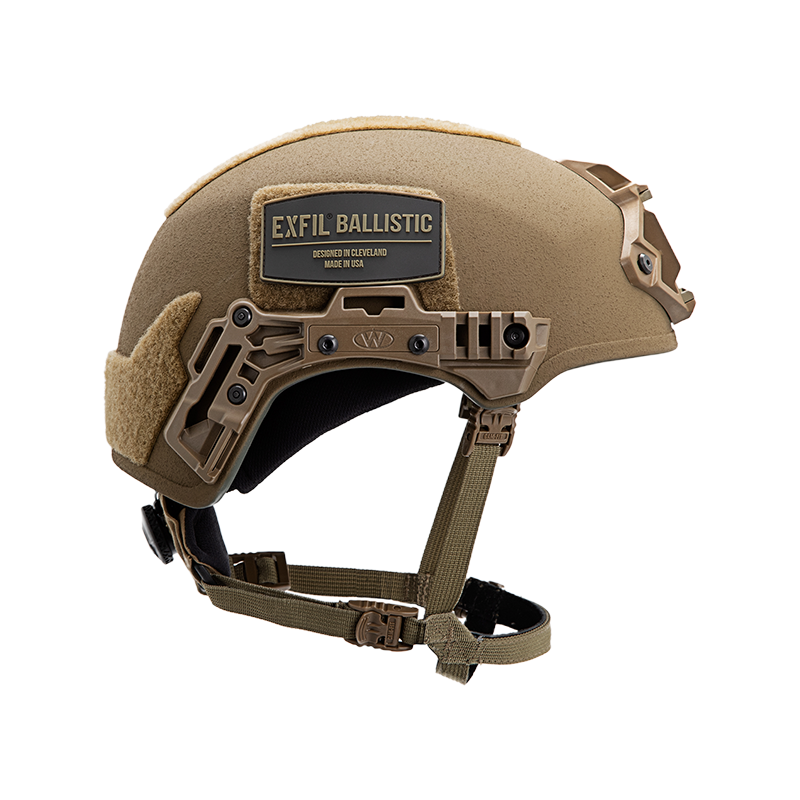

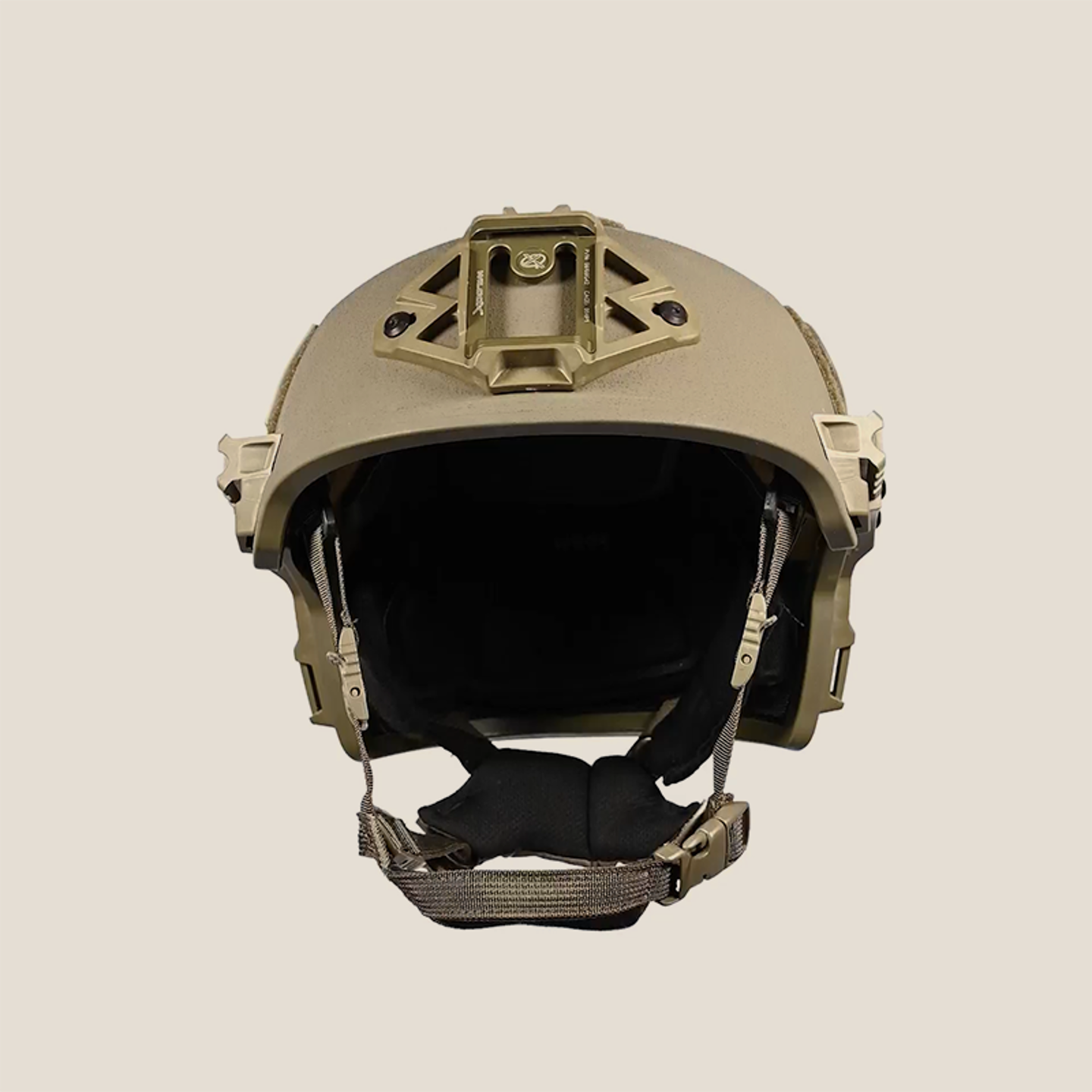

Team Wendy® EXFIL®

The EXFIL^® Ballistic helmet features an ultra-high molecular weight polyethylene shell designed for maximum energy absorption and life-saving potential. Its unique geometry ensures an optimal fit, while the boltless CAM FIT™ retention system with BOA^® dial delivers a secure fit. The Team Wendy EXFIL^® Air Fit Liner System, made with Zorbium^® Foam Technology developed through extensive research into traumatic brain injury prevention, provides top-tier impact protection and all-day comfort. Integrated rails and a Wilcox^® NVG shroud ensure full accessory compatibility.

Shop now

Get in touch

Find a dealer

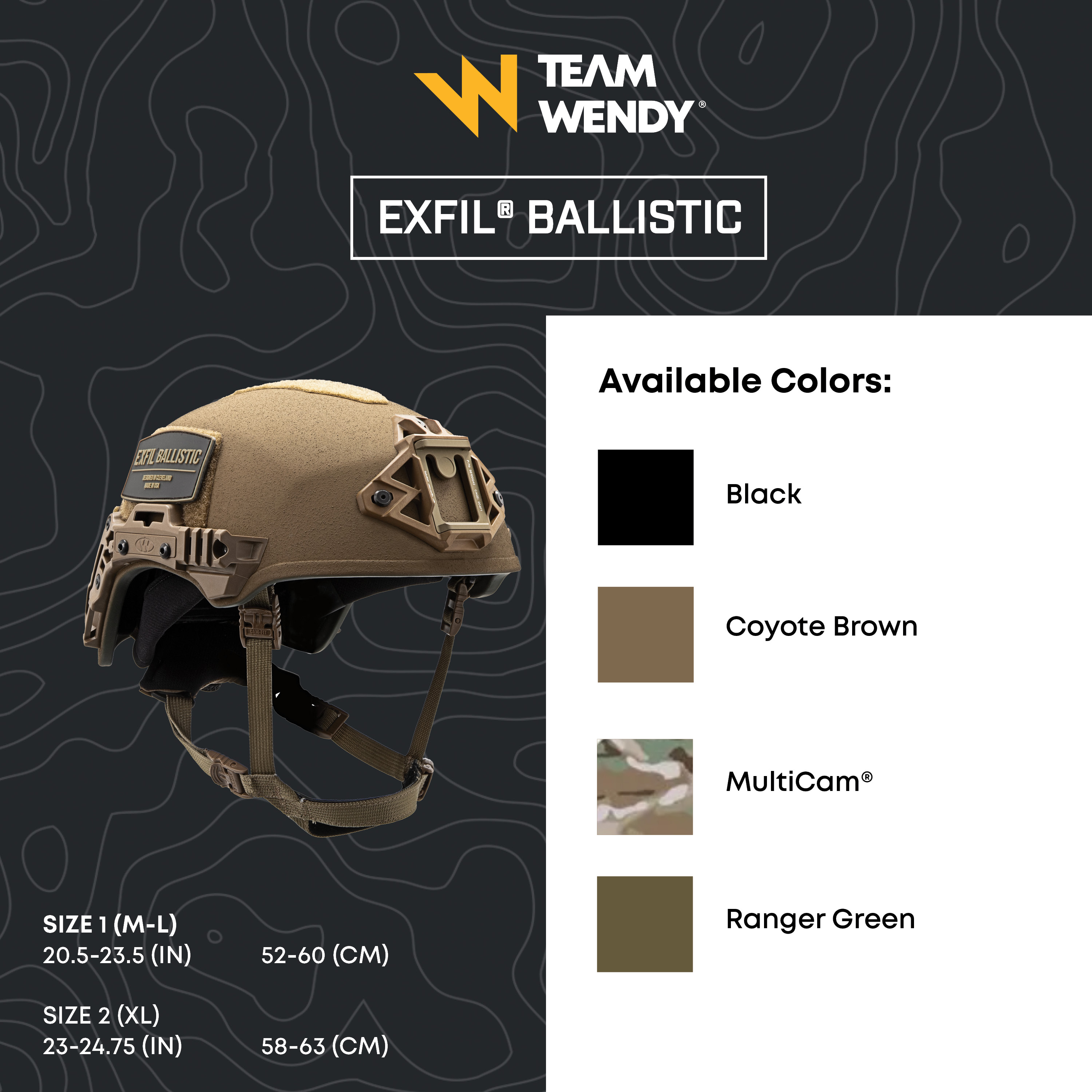

Colors:

Sizes:

Size 1 (M/L)

Size 2 (XL)

Left eye dominant (LED) retention available

Data sheet:

Download

Ballistic performance meets NIJ Level III-A (according to NIJ STD 0106.01/0108.01) standard

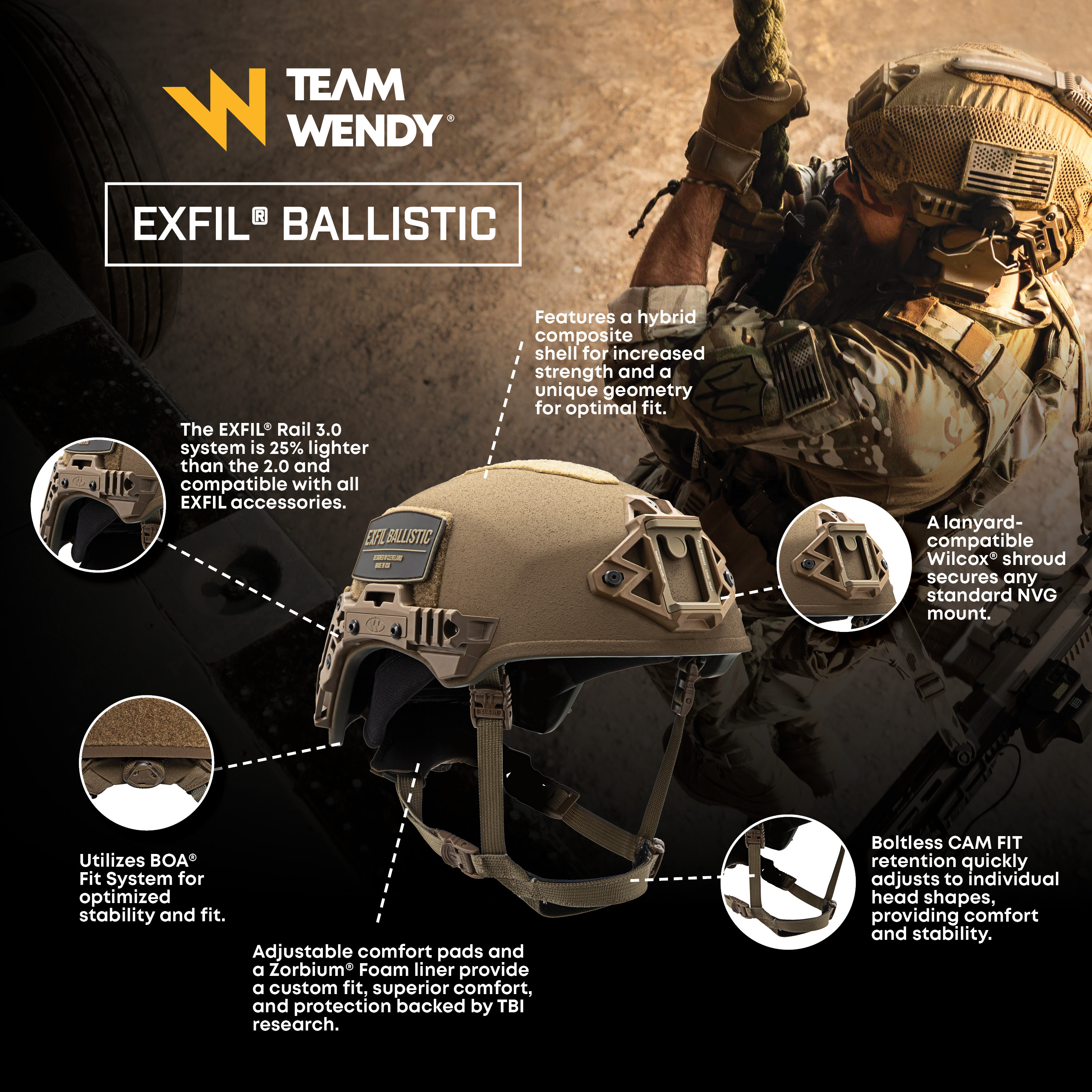

Features a hybrid composite shell for increased strength and a unique proprietary geometry for optimal fit
Innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing comfort and stability
Team Wendy EXFIL® Air Fit Liner System, made with Zorbium® Foam Technology protects against impact and allows for an overhead communications headband.
Customizable fit is achieved through a set of moveable comfort pads
A lanyard-compatible Wilcox® shroud* secures any standard NVG mount 
EXFIL® Rail 3.0 accessory mounting system is 25% lighter than the previous EXFIL® Rail 2.0 system and is compatible with all EXFIL® accessories 
Two (2) 5-Slot Magpul® MOE® picatinny rails with mounting hardware and a shock cord kit are included with helmet

*NOTE: While the Wilcox® W shroud comes standard with the EXFIL® Ballistic, the NVG mount/interface required for attaching night vision devices to the helmet, such as the Wilcox® G24, is not included.

Features

EXFIL® Ballistic

Retention system
CAM FIT™ Ballistic Retention System for EXFIL®/EXFIL® SL
Utilizes BOA® Fit System for optimized stability and fit

Cam Lock sliders for one-handed adjustment and secure fit

Left Eye Dominant (LED) option also available
Liner
TEAM WENDY EXFIL AIR FIT LINER SYSTEM w/ ZORBIUM FOAM TECHNOLOGY
16 customizable comfort pads in two thicknesses

Removable center pad to easily accommodate overhead comms

Replacement comfort pads available for purchase
Shroud

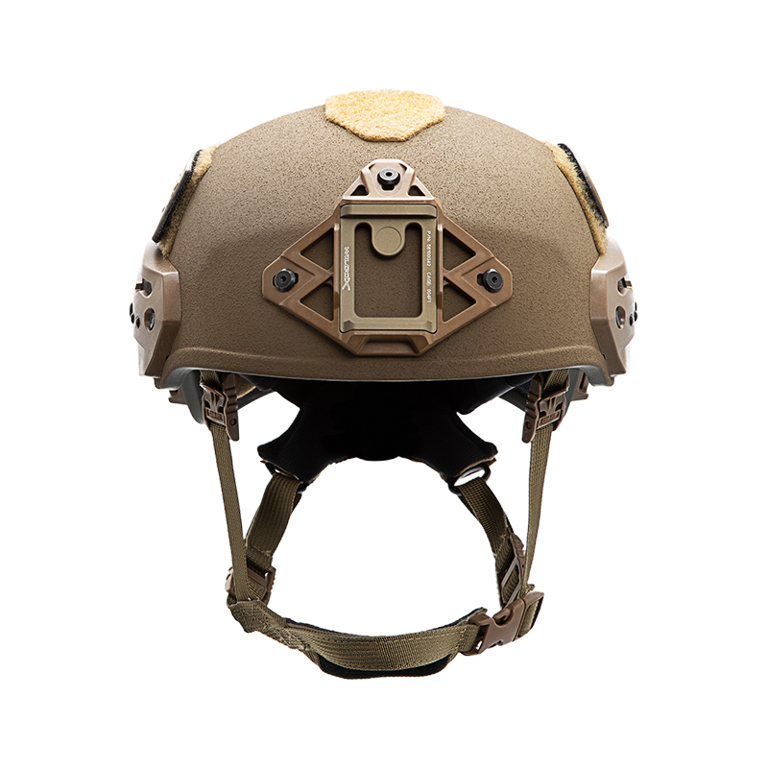

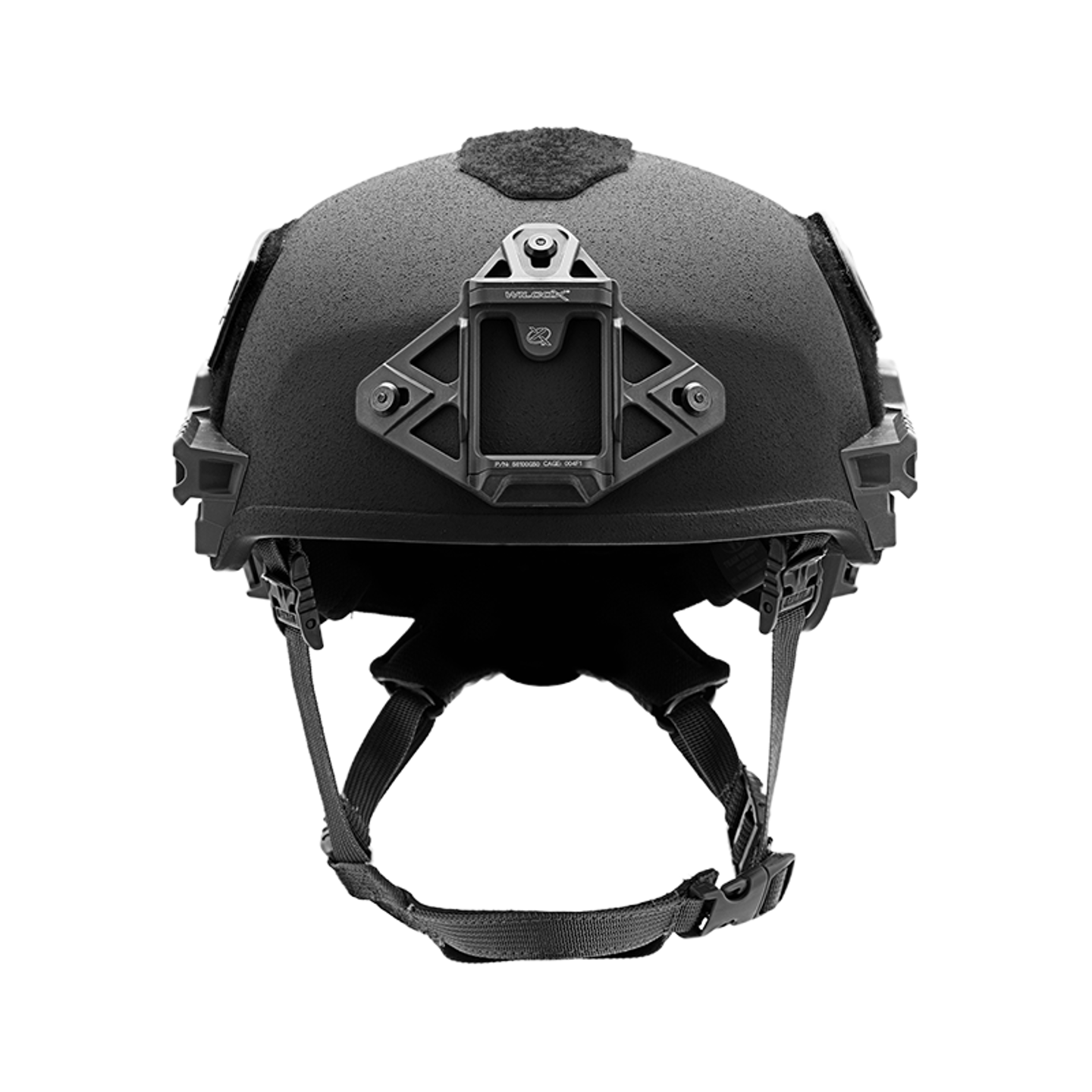

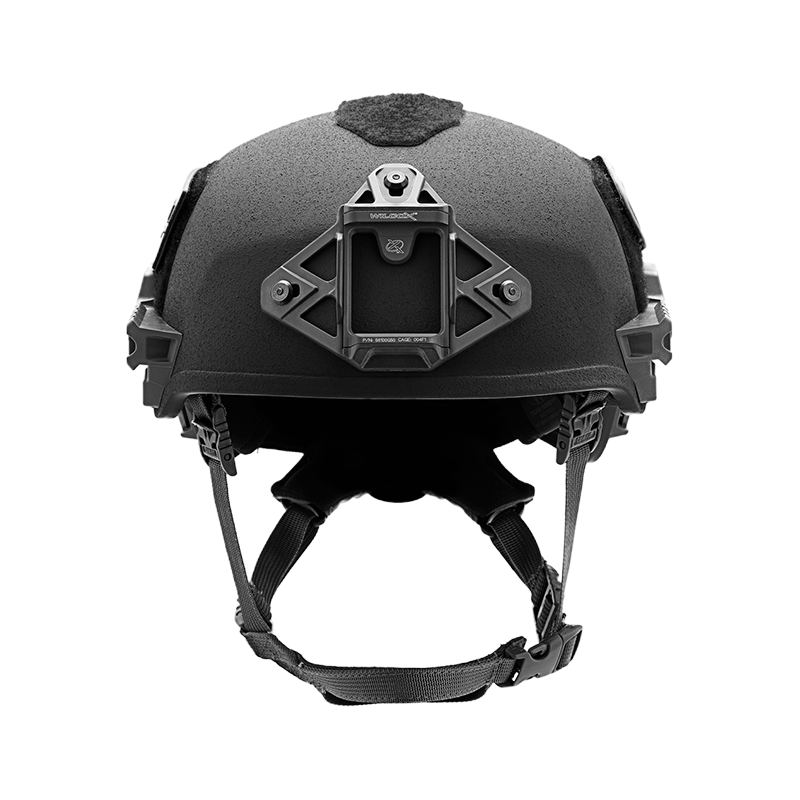

NVG Shroud
3-hole Wilcox® W shroud

Lightweight aerospace grade aluminum mount interface

Compatible with Wilcox® NVG lanyard

Compatible with most standardized NVG mount baseplates

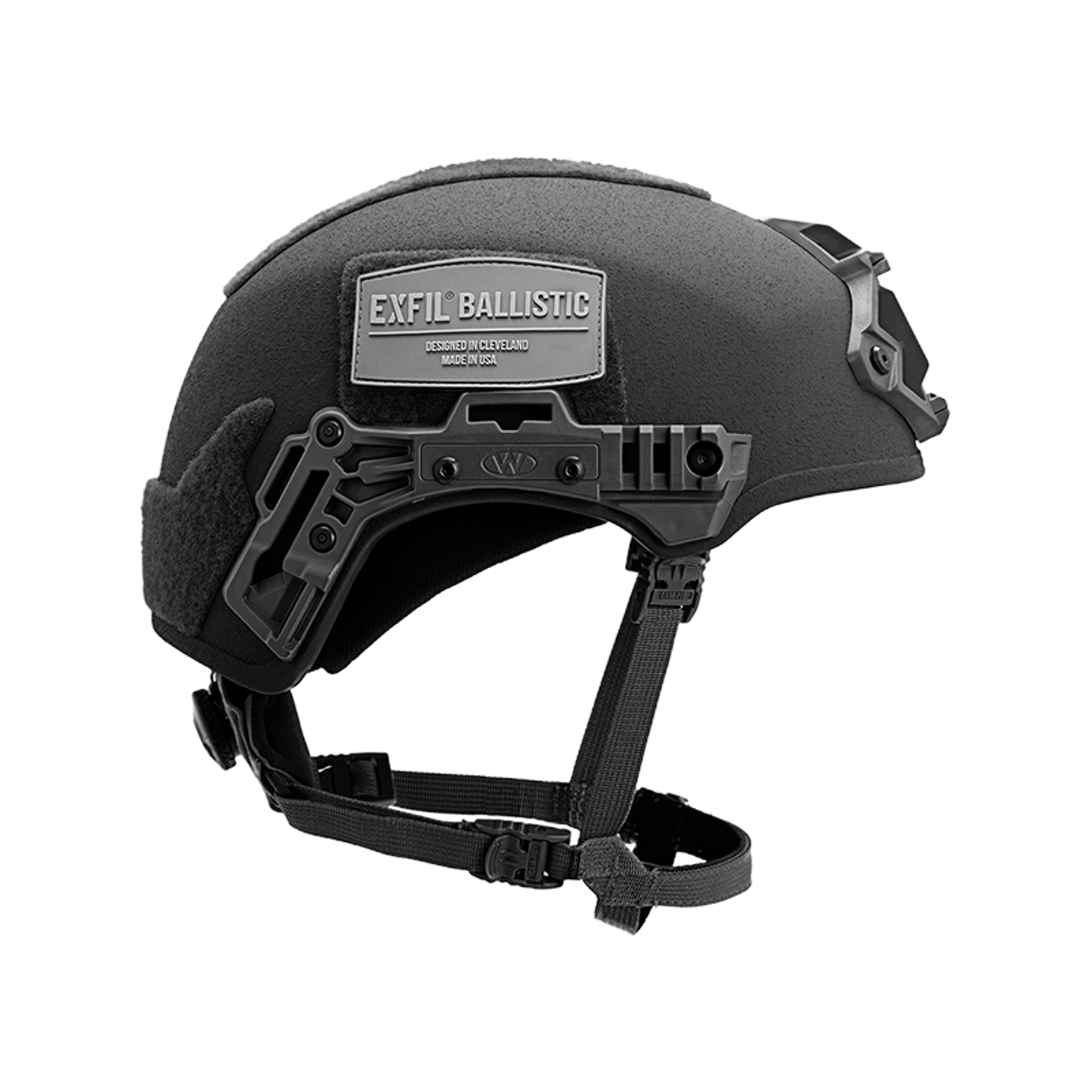

Rail system
EXFIL® Ballistic Accessory Rail System
Compatible with all standard EXFIL® accessories

Allows installation of the EXFIL® Ballistic Visor and the EXFIL® Face Shield

Includes two Magpul® MOE® Picatinny-style rails and mounting hardware

Includes shock cord kit for stabilizing NVG

Performance

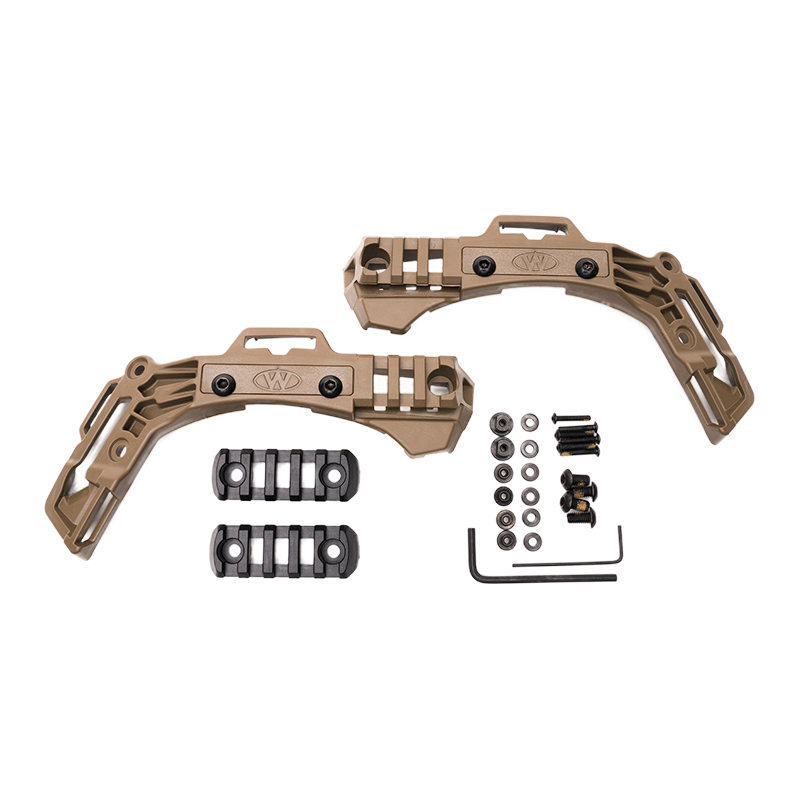

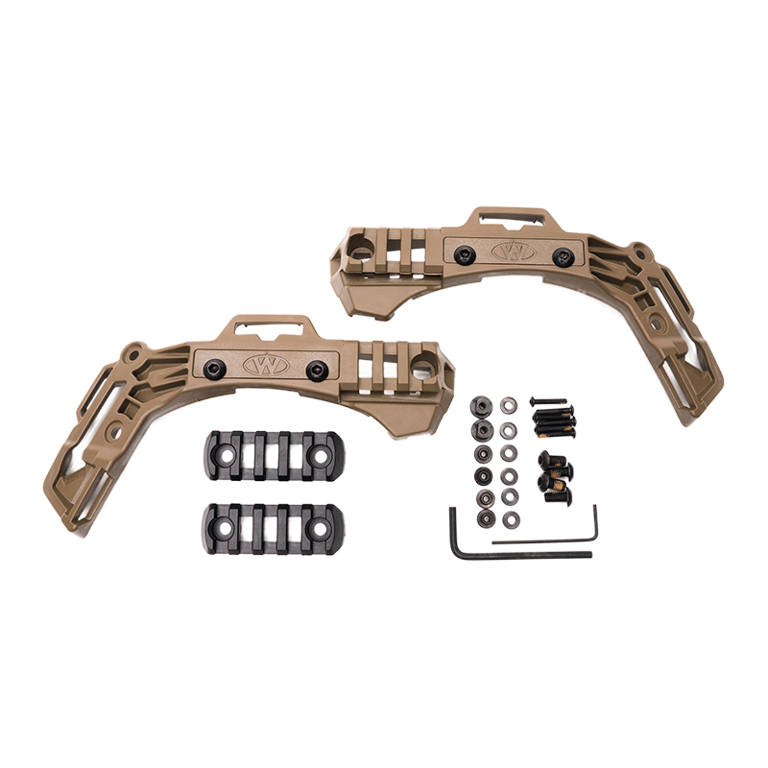

Team Wendy® EXFIL® Rail 3.0

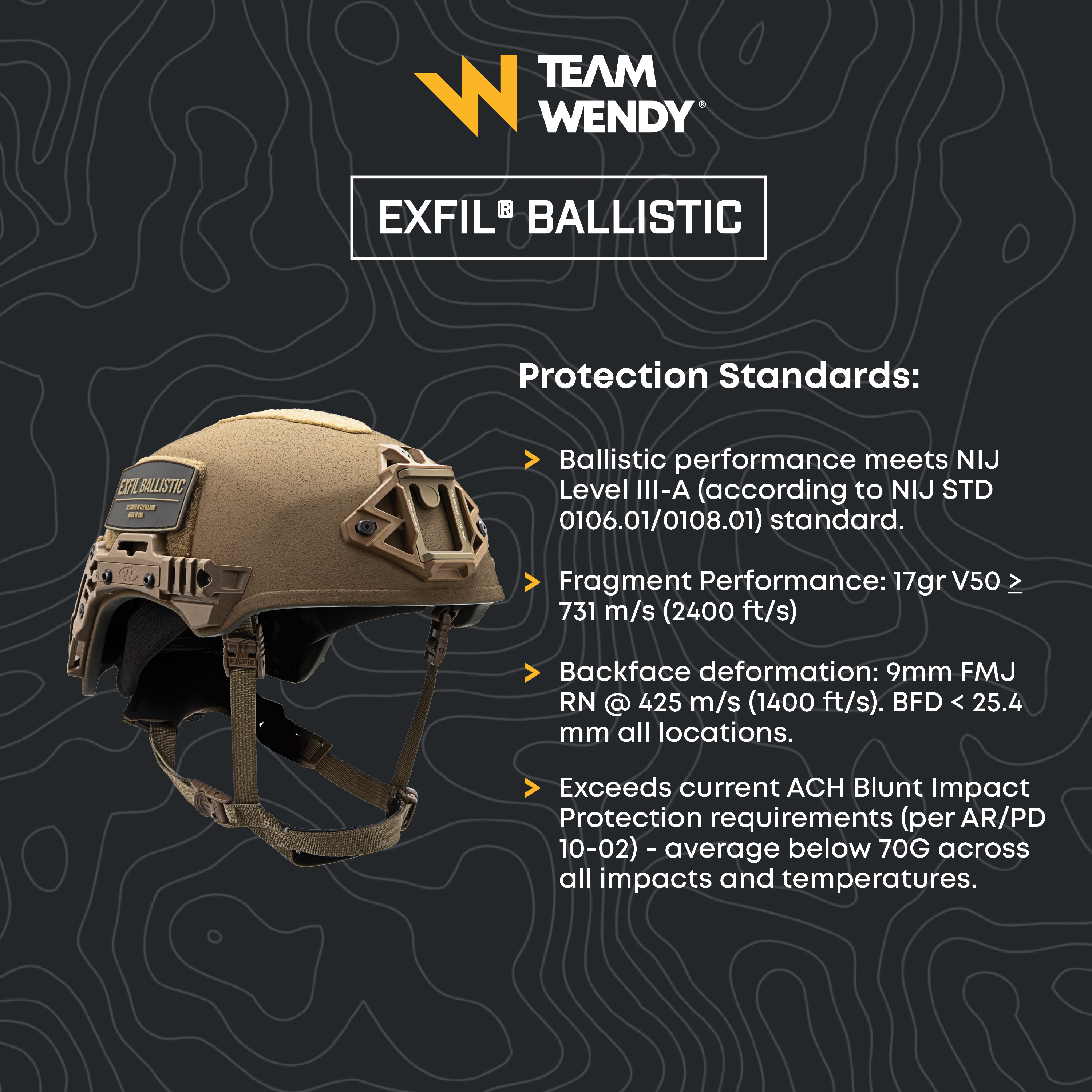

Ballistic Performance

NIJ Level III-A (according to NIJ STD 0106.01/0108.01)

Fragment Performance

17gr V50 ≥ 2400 ft/s (731 m/s)

Backface Deformation

9mm FMJ RN @ 1400 ft/s (425 m/s)

BFD < 25.4 mm all locations

Blunt Impact Performance

Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02) - average below 70G across all impacts and temperatures

Size & Weight

Team Wendy® EXFIL® Rail 3.0

Size

Sizing	Size 1 (M/L)	Size 2 (XL)
Head circumference (in):	20.5 - 23.5	23 - 24.75
Head circumference (cm):	52-60	58-63
Hat size (USA):	6 5/8 - 7 1/2	7 3/8 – 7 7/8

PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size. You can customize the fit with the comfort pads that are included with your helmet purchase. If more pads are needed, we sell additional comfort pad sets.

Weight

Size	Size 1 (M/L)	Size 2 (XL)
Complete System:	2.6 lbs (1.18 kg)	2.75 lbs (1.25 kg)
Shell:	1.75 lbs (0.79 kg)	1.85 lbs (0.84 kg)

Complete system weight includes helmet shell, accessory rails, impact liner and retention system.

Compare products

Team Wendy®

EXFIL®

Shell Technology

Polyethylene and other fibers in a proprietary composite matrix

Weight

2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.

Performance

Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01)
Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s)
Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog
Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02)

Liner System

Team Wendy® EXFIL® Air fit liner system w/ Zorbium® foam technology.

Retention System

CAM FIT™ Ballistic Retention System for EXFIL®/EXFIL® SL

Shroud

Lanyard compatible 3-hole Wilcox® W shroud.

Warranty

Ballistic package – up to five (5) years from date of delivery Liner, retention, accessory rails and shroud – up to one (1) year from date of delivery Exterior coating (paint) – up to one (1) year from date of delivery assuming that the helmet has not been otherwise painted in that timeframe.

Ballistic Helmet

Team Wendy®

EPIC™ Responder Plus
Shell Technology

Ultra-high molecular weight polyethylene fiber composites with Ceradyne Seamless Ballistic Shell Technology.

Weight

Complete system:  Small 2.49 lbs (1.27 kg)  Medium 2.55 lbs (1.30 kg)  Large 2.73 lbs (1.42 kg)  XL 2.99 lbs (1.51 kg) .
Performance
NIJ IIIA (NIJ STD 0106.01/0108.01)

17gr V50 ≥ 2560 ft/s (780 m/s)

9mm BFD ≤ 25.4 mm

Meets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H.
Liner System

Team Wendy EPIC Air® Fit Liner System w/ Zorbium Foam Technology.

Retention System

CAM FIT™ Ballistic Retention System for EPIC™/RIFLETECH™

Shroud

Front cover plate to aid in face shield alignment.

Warranty

Ballistic package – up to ten (10) years from date of manufacture   Liner, retention, accessory rails, and shroud – up to one (1) year from date of manufacture   Exterior coating (paint) – up to one (1) year from date of manufacture if the helmet has not been otherwise painted in that timeframe .
Ballistic Helmet

Team Wendy®

EPIC™ Protector
Shell Technology

Ultra-high molecular weight polyethylene fiber composites with Ceradyne Seamless Ballistic Shell Technology.

Weight

Complete system: Small 2.8 lbs (1.27 kg) Medium 2.86 lbs (1.30 kg) Large 3.12 lbs (1.42 kg) XL 3.33 lbs (1.51 kg).
Performance
Substantially lighter than the ACH while meeting NIJ IIIA (NIJ STD 0106.01/0108.01)

Meets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H

117gr V50 ≥ 2560 ft/s (780 m/s)  9mm BFD ≤ 25.4 mm.
Liner System

Team Wendy EPIC Air® Fit w/ Zorbium Foam Technology.

Retention System

CAM FIT™ Ballistic Retention System for EPIC™/RIFLETECH™

Shroud

Front cover plate to aid in face shield alignment.

Warranty

Ballistic package – up to ten (10) years from date of manufacture Liner, retention, accessory rails, and shroud – up to one (1) year from date of manufacture Exterior coating (paint) – up to one (1) year from date of manufacture if the helmet has not been otherwise painted in that timeframe.
Ballistic Helmet

Team Wendy®

EPIC™ Specialist
Shell Technology

Ultra-high molecular weight polyethylene fiber composites with Ceradyne Seamless Ballistic Shell Technology.

Weight

Complete system: Small 2.64 lbs (1.15 kg) Medium 2.7 lbs (1.17 kg) Large 2.82 lbs (1.23 kg) XL 3.08 lbs (1.35 kg).
Performance
NIJ IIIA (NIJ STD 0106.01/0108.01)  

17gr V50 ≥ 2560 ft/s (780 m/s) 

9mm BFD ≤ 25.4 mm  

Meets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H.
Liner System

Team Wendy EPIC Air® Fit w/ Zorbium Foam Technology.

Retention System

CAM FIT™ Ballistic Retention System for EPIC™/RIFLETECH™

Shroud

Durable Aluminum NVG Shroud.

Warranty

Ballistic package – up to ten (10) years from date of manufacture  Liner, retention, accessory rails, and shroud – up to one (1) year from date of manufacture  Exterior coating (paint) – up to one (1) year from date of manufacture if the helmet has not been otherwise painted in that timeframe
Rifle-Rated Helmet

Team Wendy®

RIFLETECH™
Shell Technology

Ultra-high molecular weight polyethylene fiber composites with Ceradyne Seamless Ballistic Shell Technology.

Weight

Complete system:  Small 2.78 lbs (1.26 kg)  Medium 2.98 lbs (1.35 kg)  Large 3.17 lbs (1.44 kg)  XL 3.48 lbs (1.58 kg)
Performance
RTP at muzzle velocity

7.62x39 MSC

7.62x51 FMJ (M80 Ball NATO round)

5.56 M193 BT

9mm FMJ RN

Defeats threats NIJ RF1 (STD 0123.00) and NIJ Level III (STD 0108.01) tested in accordance with NIJ STD 0106.01

17gr FSP V₅₀ ≥ 4430 fps (1350 m/s) (Tested on XL shell)
Liner System

Team Wendy® RIFLETECH™ Air Fit liner system w/ Zorbium® foam technology.

Retention System

CAM FIT™ Ballistic Retention System for EPIC™/RIFLETECH™

Shroud

Enhanced design with shock cords providing superior fit with NVG

Warranty

Ballistic package – up to five (5) years from date of delivery Liner, retention, accessory rails and shroud – up to one (1) year from date of delivery Exterior coating (paint) – up to one (1) year from date of delivery assuming that the helmet has not been otherwise painted in that timeframe.
Ballistic Helmet

Team Wendy®

EXFIL® SL Ballistic
Shell Technology

Polyethylene and other fibers in a proprietary composite matrix

Weight

2.22 lbs (1.01kg) for size 1, 2.31 lbs (1.05kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
Performance
Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01).

Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s).

Backface Deformation: 9mm FMJ RN @ 1195 ft/s (365 m/s). BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog.

Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
Liner System

Team Wendy® EXFIL® SL Air fit liner system w/ Zorbium® foam technology.

Retention System

Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.

Shroud

Lanyard compatible 3-hole Wilcox® NVG shroud.

Warranty

Ballistic package – up to five (5) years from date of delivery Liner, retention, accessory rails and shroud – up to one (1) year from date of delivery Exterior coating (paint) – up to one (1) year from date of delivery assuming that the helmet has not been otherwise painted in that timeframe.
