Team Wendy EPIC™ Protector Ballistic Law Enforcement Helmet

EPIC™ Protector

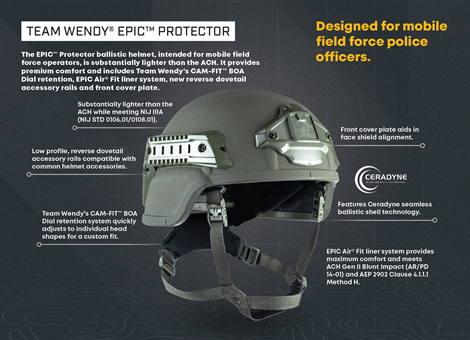

EPIC Protector Features

EPIC Protector Technical Data Sheet Page 1

EPIC™ Protector Technical Data Sheet | Front Page

EPIC Protector Technical Data Sheet Page 2

EPIC™ Protector Technical Data Sheet | Back Page

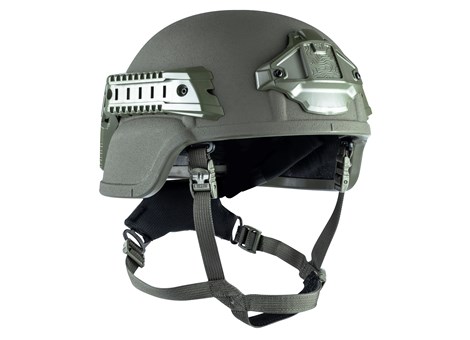

EPIC™ Protector | Full-Cut | Ranger Green | Right Angle

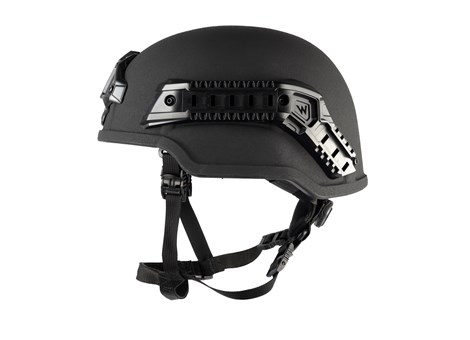

EPIC™ Protector | Mid-Cut | Black | Left Side

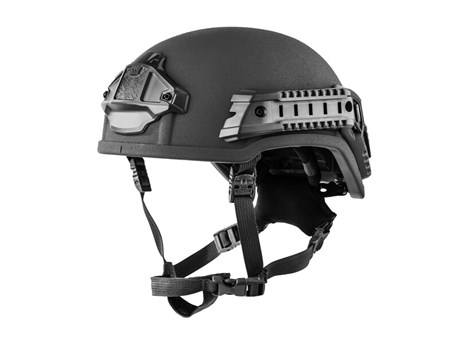

EPIC™ Protector | High-Cut | Black | Left Angle

EPIC Protector Ballistic Helmet Ranger Green Interior

EPIC™ Protector | Ranger Green | Liner/Interior

$839.16MAP Pricing
Available Colors
- Black
- Ranger Green
Size
- Small
- Medium
- Large
- X-Large
Shell Type
- Full-Cut
- Mid-Cut
- High-Cut
Quantity
Team Wendy® EPIC™ Protector Ballistic added to cartHere's a few other products that may interest you.
View my cartLogin
Team Wendy® EPIC™ Protector Ballistic added to wishlistHere's a few other products that may interest you.
View my wishlistLogin
CURRENT LEAD TIME FOR EPIC PROTECTOR HELMET ORDERS IS 4 WEEKS FOR ORDERS UNDER 10 UNITS AND AT LEAST 4-6 WEEKS FOR LARGER ORDERS DEPENDING ON QUANTITY. ORDERS WILL SHIP SOONER IF AVAILABLE.

Product Description

Designed for mobile field force police officers
Available in three (3) shell types: Full-Cut, Mid-Cut and High-Cut
Features Ceradyne seamless ballistic shell technology*
Substantially lighter than the ACH while meeting NIJ IIIA (NIJ STD 0106.01/0108.01)
Team Wendy’s CAM-FIT™ BOA Dial retention system quickly adjusts to individual head shapes for a custom fit
EPIC Air® Fit liner system provides maximum comfort and meets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H
Low profile, reverse dovetail accessory rails compatible with common helmet accessories
Front cover plate ensures riot shield alignment

*Ceradyne seamless ballistic shell technology incorporates a proprietary Thermoplastic composites forming/molding process and no-hole-through design.

For information on the EPIC™ Ballistic line of helmets warranty policy, please visit our Warranty Page.

Product comparison

EXFIL® Ballistic
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® W shroud.
EXFIL® Ballistic SL
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.22 lbs (1.01kg) for size 1, 2.31 lbs (1.05kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm FMJ RN @ 1195 ft/s (365 m/s). BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® shroud.
EXFIL® Carbon
- Shell Technology
  Carbon Fiber Shell
- Weight
  Size 1 is 1.66 lbs (0.75 kg). Size 2 is 1.68 lbs (0.76 kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures. Also exceeds shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes eight adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Wilcox® W shroud for NVG mounts, compatible with retractable lanyard system.

Product Features

Ceradyne Seamless Ballistic Shell Technology
- Complete no thru-hole technology provides increased ballistic performance
- Proprietary thermoplastic composites forming/molding process
- High strength/low-density combination fiber offers maximum strength-to-weight ratio
- Ultra-high molecular weight polyethylene fiber composites, 33% lighter than Aramid material
Reverse Dovetail Accessory Rails
- No thru-hole attachment (No drilled holes through the ballistic shell for attachment)
- Integrated low profile reverse dove-tail mounting system
- Compatible with common helmet accessories
- Provides counterweight attachment options
- Accommodates optional shock cord system for increased stability of Night Vision Devices
No Thru-Hole CAM FIT™ Retention System
- BOA® fit system with micro-adjustable dial
- Utilizes Cam Lock sliders for one-handed adjustment and secure fit
- Asymmetric design keeps buckle tucked smoothly along jaw line
- Chin cup lining ensures maximum comfort and chafe-free wear
- Custom clip system attachment (no-thru holes)
EPIC Air® Fit Liner System
- Utilizes Team Wendy’s proven Zorbium® foam technology
- Proprietary water-resistant film and loop fabric covering
- Designed to accommodate communication headset integration
- Meets ACH Gen II Blunt Impact (AR/PD 14-01)

Performance

Ballistic Performance

NIJ IIIA (NIJ STD 0106.01/0108.01)

Fragment Performance

117gr V50 ≥ 2560 ft/s (780 m/s)

Backface Deformation

9mm BFD ≤ 25.4 mm

Blunt Impact Performance

Meets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H

Weight: Full-Cut

*Weights (lbs) +/- 3%

Size	Complete System	Shell
Small	2.8 lbs (1.27 kg)	2.11 lbs (0.96 kg)
Medium	2.86 lbs (1.30 kg)	2.17 lbs (0.98 kg)
Large	3.12 lbs (1.42 kg)	2.42 lbs (1.10 kg)
XL	3.33 lbs (1.51 kg)	2.62 lbs (1.19 kg)

Weight: Mid-Cut

*Weights (lbs) +/- 3%

Size	Complete System	Shell
Small	2.75 lbs (1.27 kg)	2.06 lbs (0.96 kg)
Medium	2.81 lbs (1.30 kg)	2.12 lbs (0.98 kg)
Large	3.01 lbs (1.42 kg)	2.31 lbs (1.10 kg)
XL	3.27 lbs (1.51 kg)	2.56 lbs (1.19 kg)

Weight: High-Cut

*Weights (lbs) +/- 3%

Size	Complete System	Shell
Small	2.53 lbs (1.15 kg)	1.84 lbs (0.84 kg)
Medium	2.59 lbs (1.17 kg)	1.9 lbs (0.86 kg)
Large	2.71 lbs (1.23 kg)	2.01 lbs (0.91 kg)
XL	2.97 lbs (1.35 kg)	2.26 lbs (1.02 kg)

Shell weight includes edge trim & paint.

Complete system weight includes helmet shell, rails, impact liner and retention system.

Sizing

Size	Head Circumference (in)	Head Circumference (cm)
Small	20 – 21.25	52 – 54
Medium	21.6 – 22.4	54 – 57
Large	22.5 – 23.5	57 – 60
XL	23.6 – 25.2	60 – 64

PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size.
