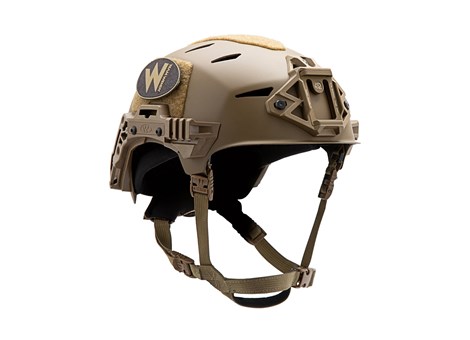

EXFIL® Carbon Rail 3.0 | Coyote Brown | Angle

Coyote Brown EXFIL Carbon Rail 2.0 Helmet Angle

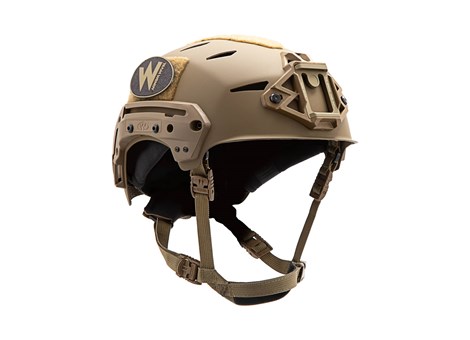

EXFIL® Carbon Rail 2.0 | Coyote Brown | Angle

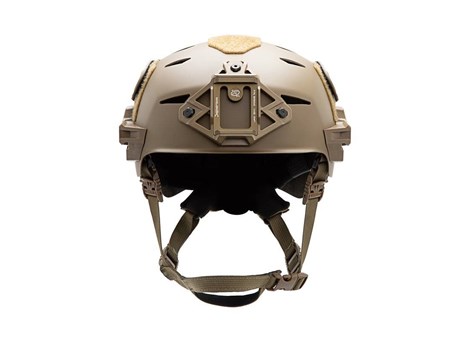

EXFIL® Carbon Rail 3.0 | Coyote Brown | Front

Coyote Brown EXFIL Carbon Rail 2.0 Front

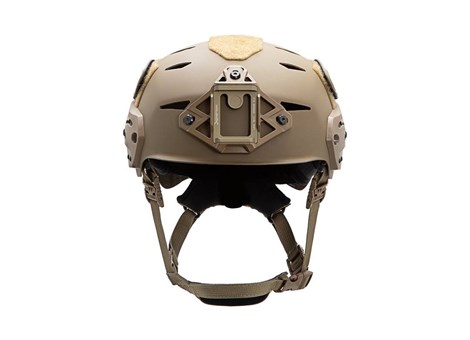

EXFIL® Carbon Rail 2.0 | Coyote Brown | Front

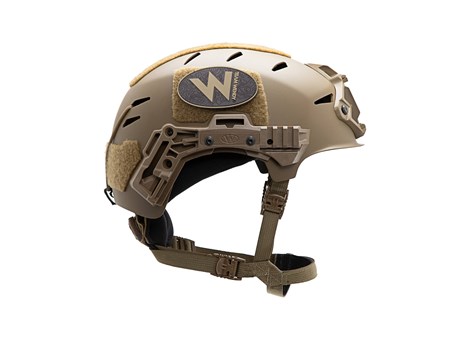

EXFIL® Carbon Rail 3.0 | Coyote Brown | Side

EXFIL® Carbon Rail 2.0 | Coyote Brown | Side

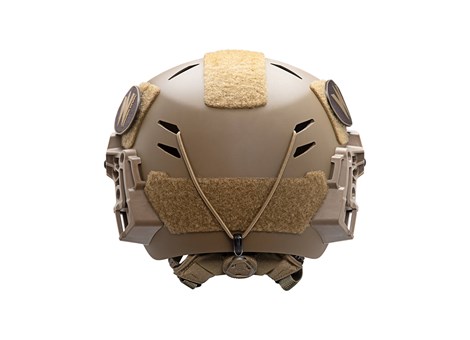

EXFIL® Carbon Rail 3.0 | Coyote Brown | Rear

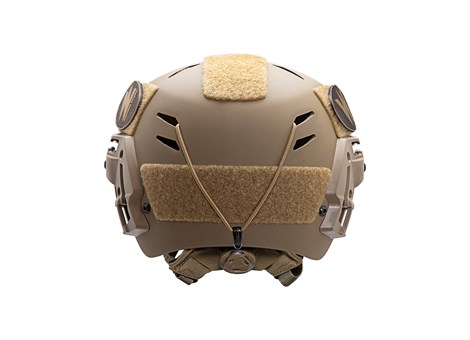

EXFIL® Carbon Rail 2.0 | Coyote Brown | Rear

EXFIL® Carbon Rail 3.0 | Coyote Brown | Side | Shock Cord Installed

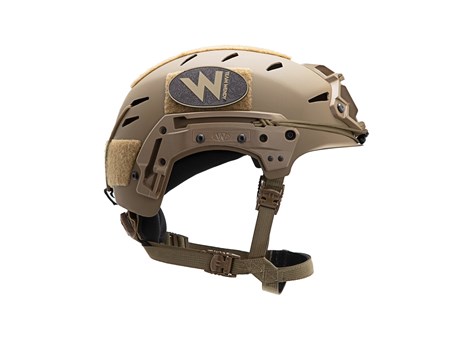

EXFIL® Carbon Rail 2.0 | Coyote Brown | Side | Shock Cord Installed

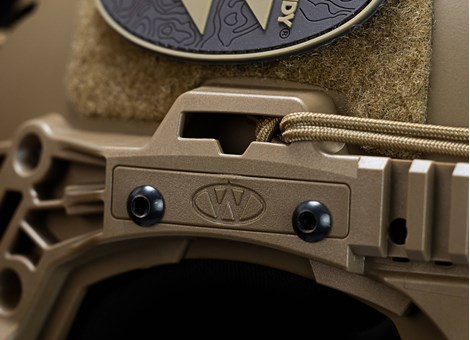

EXFIL® Carbon Rail 3.0 | Shock Cord

EXFIL® Carbon Rail 2.0 | Shock Cord

EXFIL® Carbon | Coyote Brown | Interior

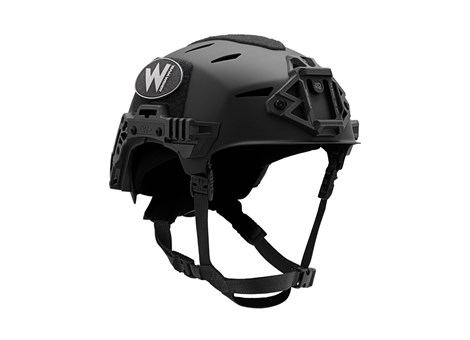

EXFIL® Carbon Rail 3.0 | Black | Angle

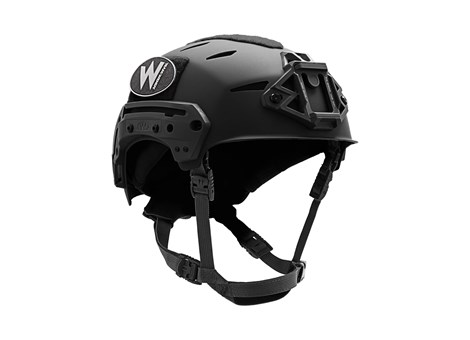

EXFIL® Carbon Rail 2.0 | Black | Angle

EXFIL® Carbon Rail 3.0 | Black | Front

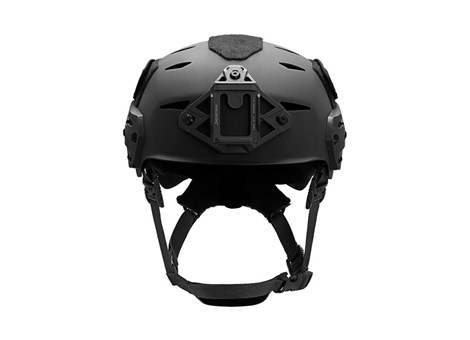

EXFIL® Carbon Rail 2.0 | Black | Front

EXFIL® Carbon Rail 3.0 | Black | Side

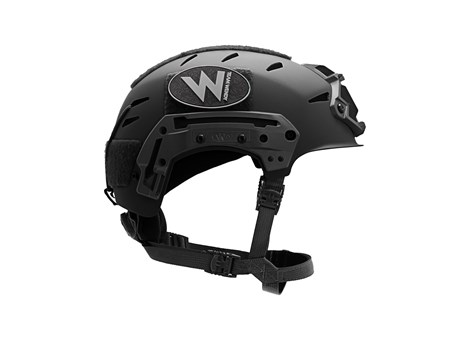

EXFIL® Carbon Rail 2.0 | Black | Side

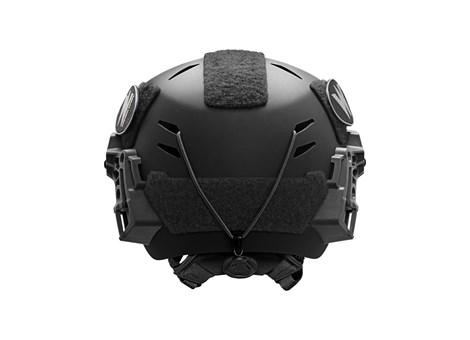

EXFIL® Carbon Rail 3.0 | Black | Rear

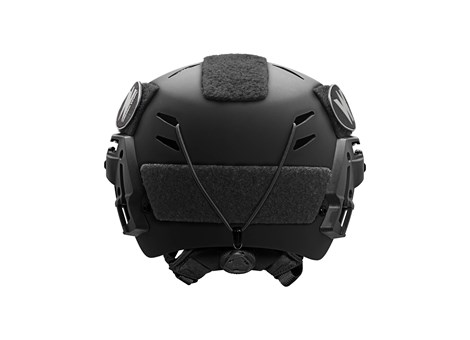

EXFIL® Carbon Rail 2.0 | Black | Rear

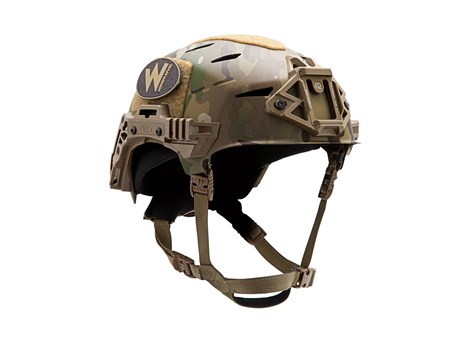

EXFIL® Carbon Rail 3.0 | MultiCam® | Angle

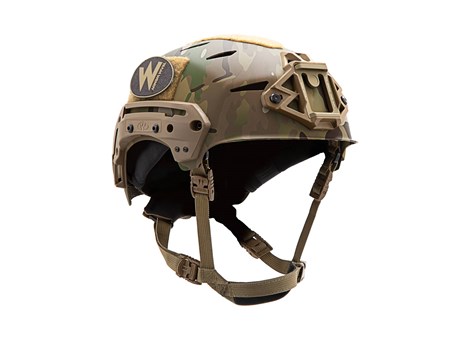

EXFIL® Carbon Rail 2.0 | MultiCam® | Angle

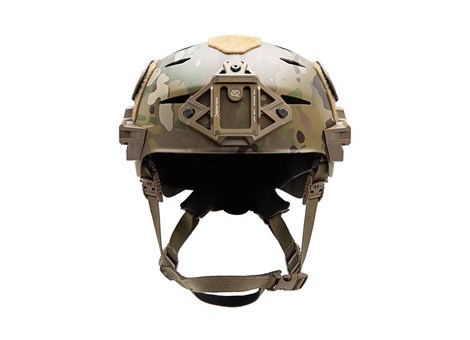

EXFIL® Carbon Rail 3.0 | MultiCam® | Front

EXFIL® Carbon Rail 2.0 | MultiCam® | Front

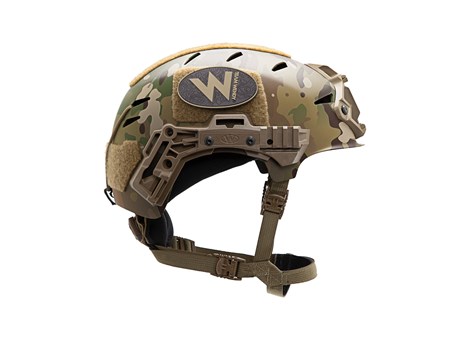

EXFIL® Carbon Rail 3.0 | MultiCam® | Side

EXFIL® Carbon Rail 2.0 | MultiCam® | Side

EXFIL® Carbon Rail 3.0 | MultiCam® | Rear

EXFIL® Carbon Rail 2.0 | MultiCam® | Rear

$611.03U.S. Pricing Only
Available Colors
- Black
- Coyote Brown
- MultiCam® (+$61.51)
Size
- Size 1 (M/L)
- Size 2 (XL)
Accessory Rail
- EXFIL® Carbon & LTP Rail 2.0
- EXFIL® Carbon & LTP Rail 3.0
Quantity
EXFIL® Carbon added to cartHere's a few other products that may interest you.
View my cartLogin
EXFIL® Carbon added to wishlistHere's a few other products that may interest you.
View my wishlistLogin

Product Description

The EXFIL^® Carbon shell is made of high-strength, lightweight carbon fiber and features a Wilcox^® W shroud* for mounting night vision devices. The Zorbium^® foam liner provides the ultimate levels of comfort and impact protection and is compatible with tactical communication headsets. The CAM FIT™ Retention System with an integrated BOA^® Fit System and Cam Lock sliders ensures a secure fit.

The EXFIL^® Carbon is available with your choice of accessory rails: EXFIL^® Rail 2.0 or EXFIL^® Rail 3.0. The EXFIL^® Rail 2.0 accessory mounting system is compatible with most EXFIL^® accessories and features T-slots for custom mounting. The EXFIL^® Rail 3.0 accessory mounting system is compatible with all EXFIL^® accessories, including the EXFIL^® Ballistic Visor and the EXFIL^® Face Shield.

*NOTE: The NVG mount/interface required for attaching night vision devices to the EXFIL^® Carbon helmet is not included.

Product comparison

EXFIL® Ballistic
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® W shroud.
- Accessory Rail System
  Available in either Ballistic Rail 2.0 or 3.0
EXFIL® Ballistic SL
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.22 lbs (1.01kg) for size 1, 2.31 lbs (1.05kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm FMJ RN @ 1195 ft/s (365 m/s). BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® shroud.
EXFIL® Carbon
- Shell Technology
  Carbon Fiber Shell
- Weight
  Size 1 is 1.66 lbs (0.75 kg). Size 2 is 1.68 lbs (0.76 kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures. Also exceeds shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes eight adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Wilcox® W shroud for NVG mounts, compatible with retractable lanyard system.
- Accessory Rail System
  Available in either Carbon/LTP Rail 2.0 or 3.0
EXFIL® LTP
- Shell Technology
  Polycarbonate Copolymer Shell
- Weight
  Both sizes weigh 1.59 lbs (.72kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Meets shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes six adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Integrated Wilcox® machined aluminum mounting plate for NVG mounts.
- Accessory Rail System
  Available in either Carbon/LTP Rail 2.0 or 3.0

Product Features

EXFIL® Carbon/LTP Rail 2.0 System
- Compatible with all EXFIL® Rail 2.0 Accessories
- Includes two Magpul® MOE® Picatinny-style rails and mounting hardware
- Two T-slots for DIY custom mounting
- Includes shock cord kit for stabilizing NVG
EXFIL® Carbon/LTP Rail 3.0 System
- Compatible with all standard EXFIL® accessories
- Includes two Magpul® MOE® Picatinny-style rails and mounting hardware
- Allows installation of the EXFIL® Ballistic Visor and the EXFIL® Face Shield
Zorbium® Foam Liner
- Eight customizable comfort pads in various shapes
- Removable center pad to easily accommodate overhead comms
- Replacement comfort pads available for purchase
CAM FIT™ Retention System
- Utilizes BOA® Fit System for optimized stability and fit
- Cam Lock sliders for one-handed adjustment and fit
Shroud
- Wilcox® W shroud for NVG mounts
- Compatible with retractable lanyard system

Performance

Performance Standards

Exceeds ACH Blunt Impact Protection requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures
Meets shock absorption requirements of BS EN 1385:2012 (Whitewater)

Weight

Complete System Weight	lbs	kg
Size 1	1.66	0.75
Size 2	1.68	0.76

Complete system weight includes helmet shell, accessory rails, shroud, impact liner, comfort pads and retention system.

Sizing

Size	Head Circumference (in)	Head Circumference (cm)	Hat Size
Size 1 (M/L)	20.75 – 23.0	53 – 58	6 3/4 – 7 1/4
Size 2 (XL)	up to 24.75	up to 63	up to 7 7/8

PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size. You can customize the fit with the comfort pads that are included with your helmet purchase. If more pads are needed, we sell additional comfort pad sets.

Resources

Marketing Materials
- EXFIL® Carbon Technical Data Sheet
