EXFIL® LTP Features
EXFIL® LTP Technical Data Sheet | Front Page
EXFIL® LTP Technical Data Sheet | Back Page

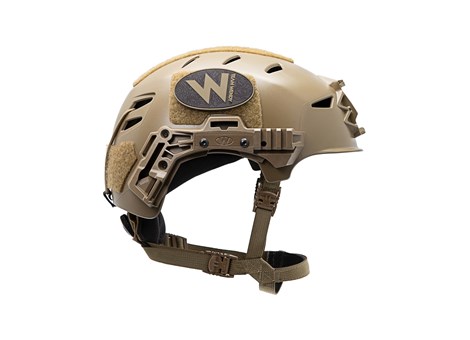

EXFIL® LTP | Coyote Brown | Side | Shock Cord Installed
EXFIL® LTP | Liner/Interior
EXFIL® LTP | Black | Front
EXFIL® LTP | Black | Rear
EXFIL® LTP Bump Helmet
CURRENT LEAD TIME FOR EXFIL LTP HELMET ORDERS IS 10 WEEKS. ORDERS WILL SHIP SOONER IF AVAILABLE.
LTP: Lightweight, Tactical, Polymer
Provides impact protection for maritime environments.
Meets performance requirements of BS EN 1385:2012 standard for whitewater helmets.
Zorbium® foam liner protects against blunt impact and allows for overhead communications headband.
Built-in NVG shroud* utilizes an integrated machined aluminum shroud insert.
CAM FIT™ Retention System with easily adjustable Cam Lock sliders and BOA® Fit System quickly adjusts to individual head shapes.
EXFIL® Rail 3.0 accessory mounting system is 25% lighter than the previous EXFIL® Rail 2.0 system and is compatible with all EXFIL® accessories.
Two (2) 5-Slot Magpul® MOE® picatinny rails with mounting hardware and a shock cord kit are included with helmet.
*NOTE: The NVG mount/interface required for attaching night vision devices to the EXFIL® LTP helmet is not included.
Proprietary Hybrid Composite Shell
2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
Lanyard compatible 3-hole Wilcox® W shroud.
Carbon Fiber Shell
Size 1 is 1.66 lbs (0.75 kg). Size 2 is 1.68 lbs (0.76 kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures. Also exceeds shock absorption requirements of BS EN 1385:2012 (Whitewater).
Zorbium® Foam Liner features moisture wicking fabric and includes eight adjustable comfort pads.
Wilcox® W shroud for NVG mounts, compatible with retractable lanyard system.
Polycarbonate Copolymer Shell
Without Accessory Rails: 1.39 lbs (0.63 kg). With Accessory Rails: 1.59 lbs (0.72 kg). Complete system weight includes helmet shell, shroud, (optional) accessory rails, impact liner and retention system.
Meets the requirements of BS EN 12492:2012 (Mountaineering). Meets shock absorption requirements of BS EN 1385:2012 (Whitewater). Meets ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13. Meets additional Off-Crown Shock Absorption of BS EN 14052:2012 (European standard for high performance industrial helmets). NOTE: EN 14052 requires a low-strength chinstrap. The EXFIL® SAR is not fully certified to BS EN 14052 because it meets the more rigorous chinstrap requirements of BS EN 12492 and to reduce the risk of losing the helmet during a fall.
Expanded Polystyrene impact liner featuring Zorbium® Foam comfort pads in two thicknesses.
Integrated BOA® Fit System and under the chin retention system featuring a Fidlock® magnetic buckle for one-handed release.
Glass-reinforced polycarbonate shroud for mounting cameras and lights.
Independently tested to meet all performance requirements of BS EN 1385:2012 standard for whitewater helmets.
